18% to 25% power saving. It eliminates mechanical gear friction loss, and servo motors only output required power based on actual running speed.
Master SeriesFilm
1 / 5
Main Display

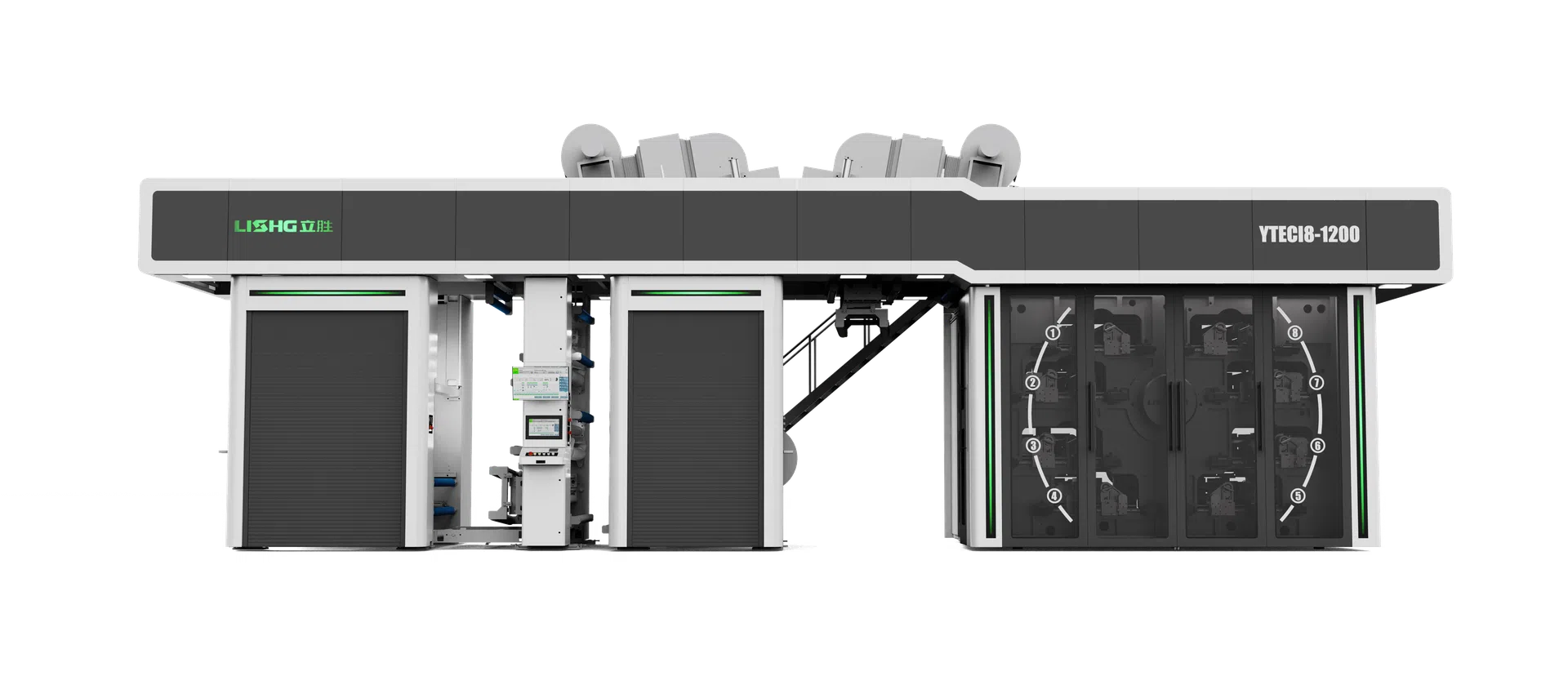

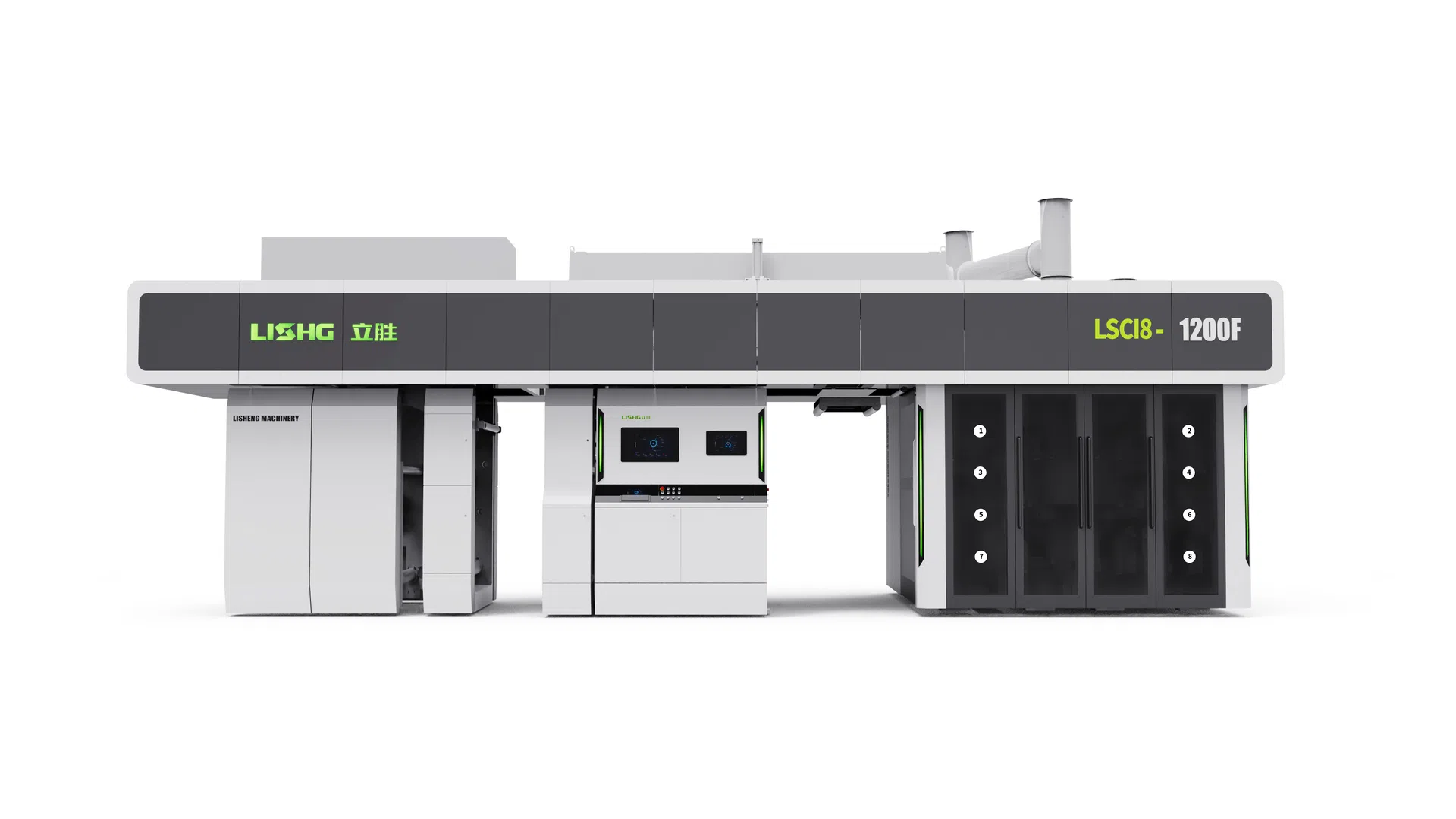

8 Colors Full Servo Gearless Flexographic Printing Machine(Film)
Hover to zoom
Machine Overview
Master SeriesFilm
8 Colors Full Servo Gearless Flexographic Printing Machine(Film)
Gearless sleeve CI flexo press features full-servo drive, no traditional gears. Equipped with auto camera color registration, it runs stably up to 500m/min with
Max Speed
Custom
Printing
Configurable
Max Width
400-1600mm
Materials
Film
Feature 01
Gearless Full-Servo Drive
Independent servo motors & electronic shaft remove gear errors, ensuring stable, quiet operation and perfect sync at all speeds.
Feature 02
Superior Register Accuracy
Stable register precision: ±0.08 mm. Closed-loop real-time correction guarantees accurate overprinting without mechanical readjustment.
Feature 03
High Intelligence & Automation
One-click parameter setting, auto splicing, tension control and inspection. Compatible with MES & CIP3/CIP4 for data monitoring and traceability.
Feature 04
High Flexibility & Short Run Adaptability
Sleeve rollers enable fast plate changing. Modular design supports multiple processes and works with paper, films and aluminum foil.
Quotation checklist
Confirm these project details before requesting a proposal.
Substrate
Film
Print width
Custom width
Color units
Project-specific
Series fit
Master Series
RFQ Quick Action
Send requirements and get a faster commercial response.
- What this machine is designed to do
- Which substrates and applications it fits
- How its specifications compare with alternatives
- What buyers should confirm before quotation
Compare with other models
Compare against similar models
Compare this model side by side with nearby alternatives right on the page, without jumping to the compare view.
Current Product
8 Colors Full Servo Gearless Flexographic Printing Machine(Film)
Current
SeriesMaster Series
CategoryFilm
Colors8
Materials
Automationhigh
Speed500m/min
Width400-1600mm
Candidate Models

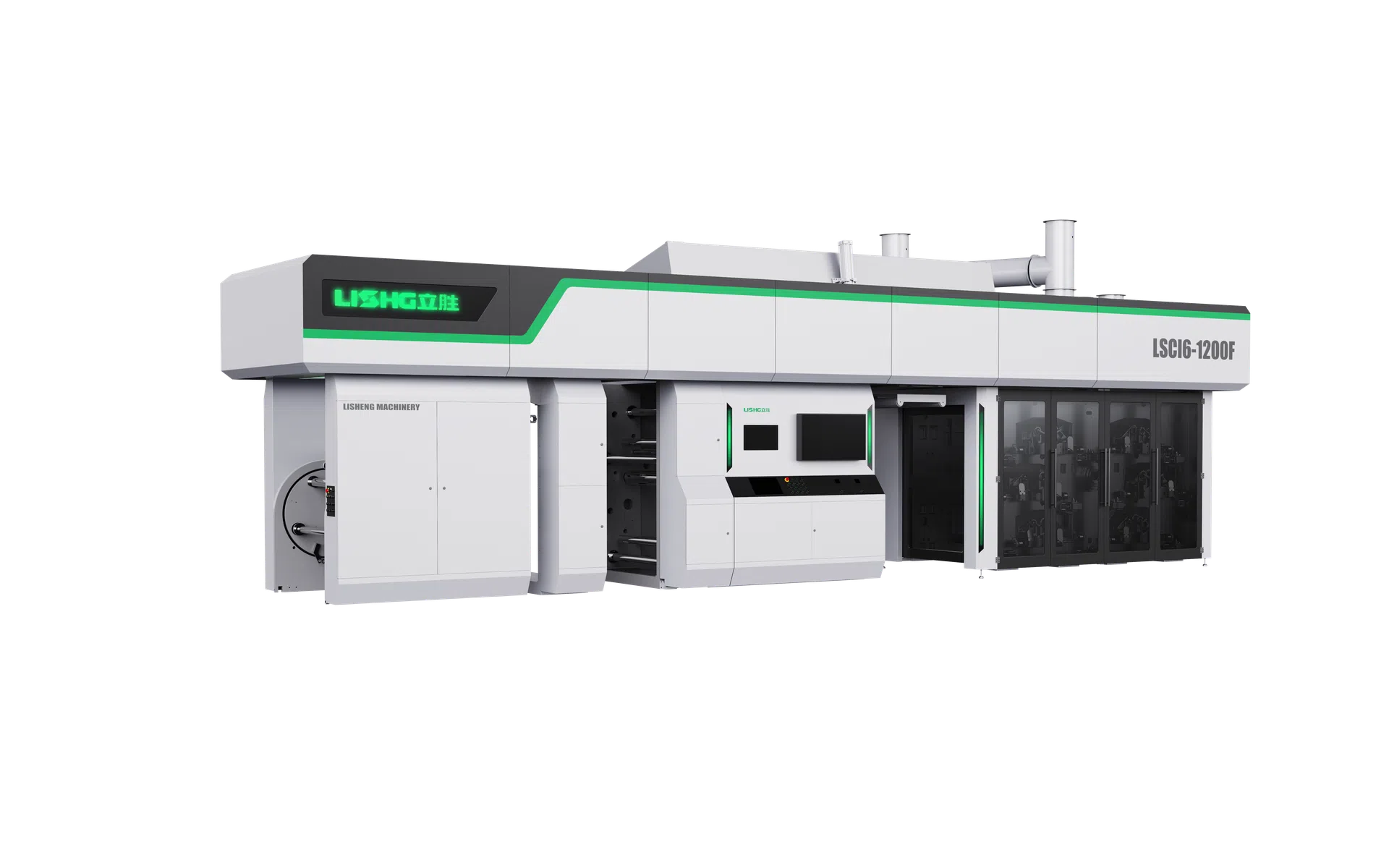

6 color gearless ci flexographic printing machine for flexible packaging
Seriesmaster
CategoryPaper
Colors6
Materials-
Automationhigh
Speed 500m/min
Width400-1600mm
Current Product
8 Colors Full Servo Gearless Flexographic Printing Machine(Film)
Compare Model
6 color gearless ci flexographic printing machine for flexible packaging
Series
Master Series
master
Category
Film
Paper
Colors
8
6
Materials
-
Machine Type
CI flexo printing machine
CI flexo printing machine
Speed
500m/min
500m/min
AI summary
8 Colors Full Servo Gearless Flexographic Printing Machine(Film) at a glance
Gearless sleeve CI flexo press features full-servo drive, no traditional gears. Equipped with auto camera color registration, it runs stably up to 500m/min with Width: 400-1600mm
Primary use
Film
Series
Master Series
Max speed
Custom
Materials
Project-specific
What is it best for?Which materials fit it?How fast can it run?Why choose this series?
Product Details
Module views for engineering review.
4 Detail Views

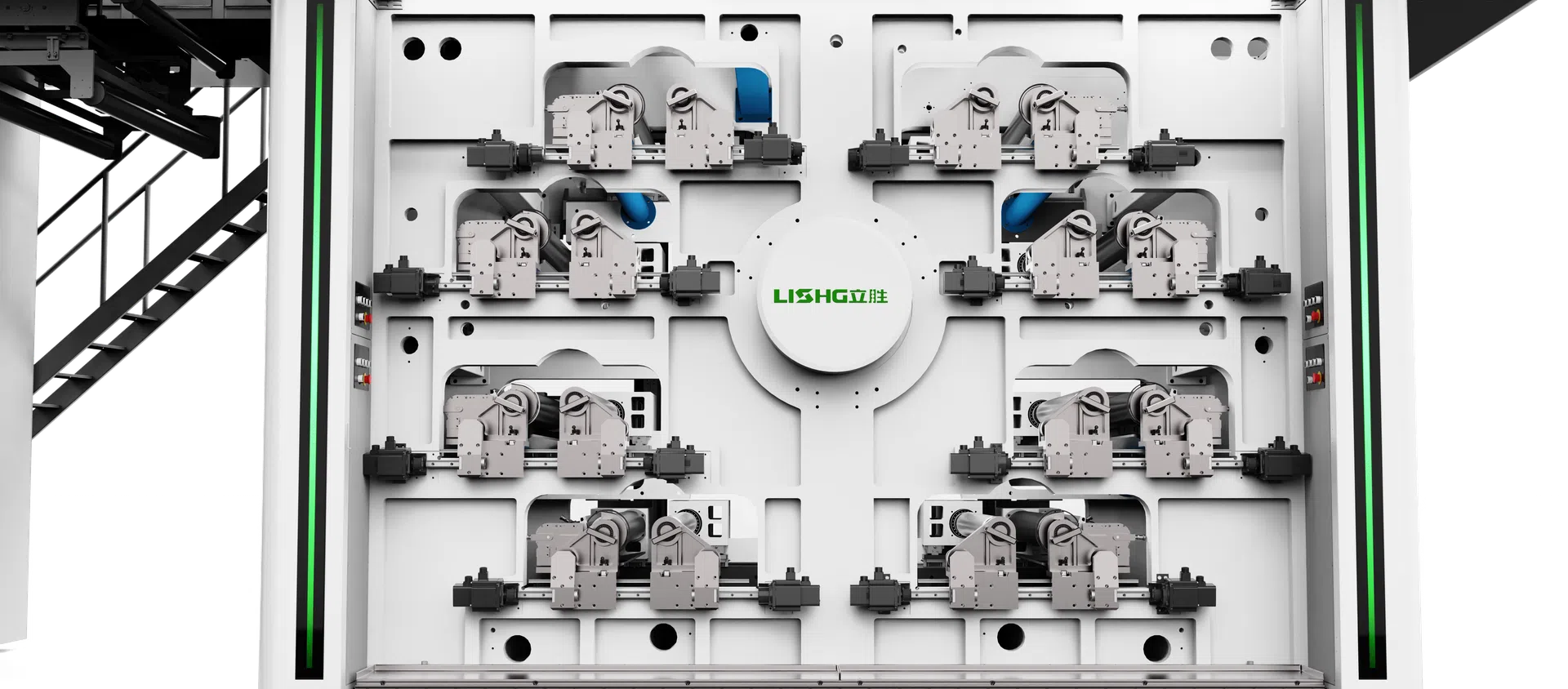

Printing unit
Current View
Printing unit
1 / 4
Module navigator
Choose a detail view
4 views
Technical Parameters
Specification matrix for procurement review.
17 Items
Custom build available
Specification matrix
| Model | YTE-61200mm |
| Max Width Of Material | 1200mm |
| Printing color | 8 colors |
| Max.Width of Printing | 1160mm |
| Machinery mechanical speed | 420m/min |
| Max.Speed of Material Printing | 350-400m/min,according to different material and print design |
| Material | Paper PE PET BOPP PVC |
| Max.Printing Length (Repeat) | 400mm-800mm |
| Printing Cylinder | Sleeve type |
| Ceramic Anilox Roller | Sleeve type |
| Max.Unwind /Rewind Dia | Φ800mm |
| Adhesive Tape Thickness | 0.38mm |
| Thickness of Plate | 1.7mm,1.14mm,2.84mm,2.28mm Or as your request |
| Registration Precision | ±0.08mm |
| Heating Method | Electric heating |
| Ink | Water base ink or solvent ink |
| Power | Voltage:380V,3PH,50HZ/60HZ |
