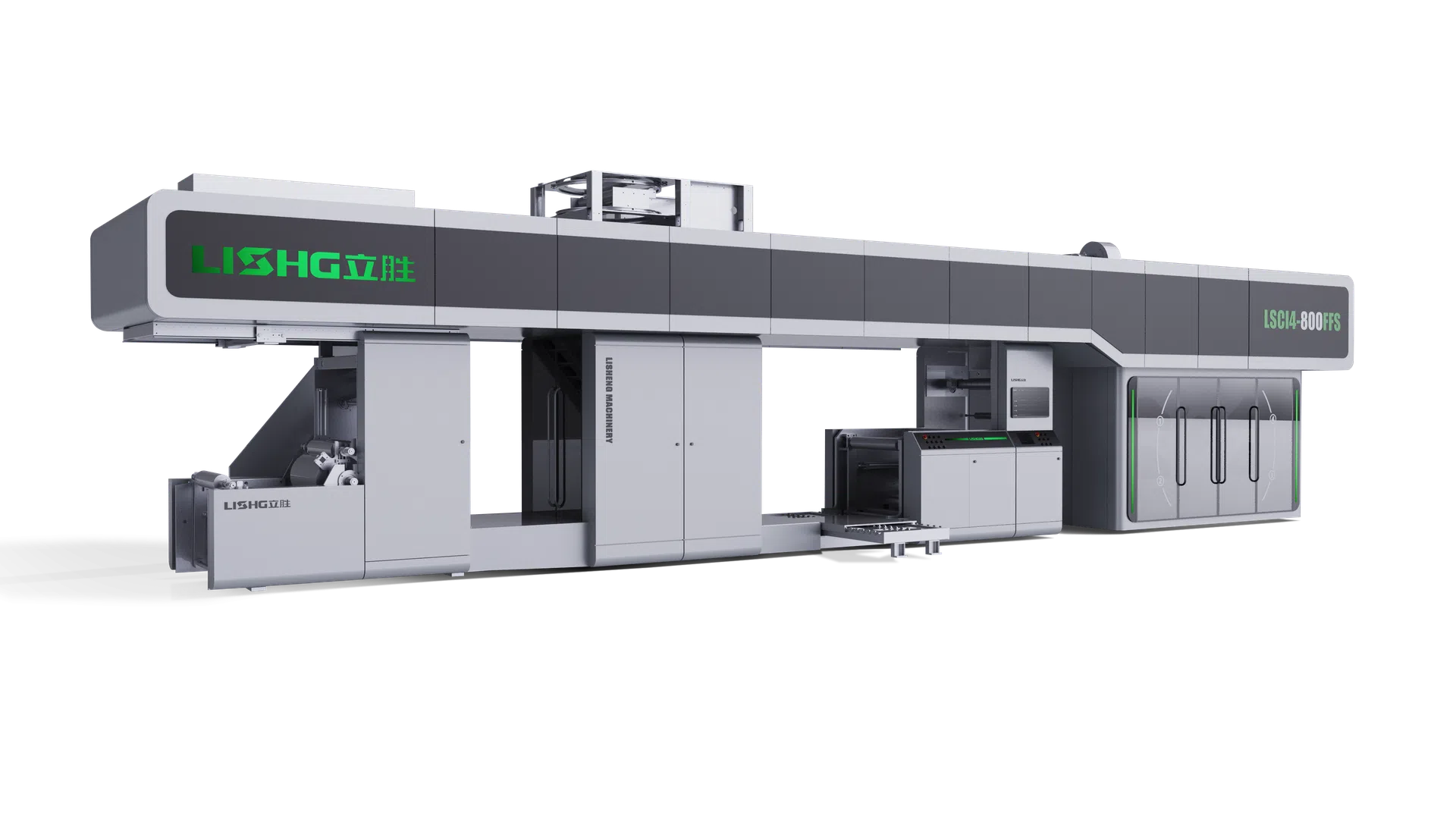

4 Colors Full Servo Gearless Flexographic Printing Machine
The gearless sleeve flexo printing machine adopts an advanced full servo system. Compared with traditional gear transmission printing machin
The gearless sleeve flexo printing machine adopts an advanced full servo system. Compared with traditional gear transmission printing machines, it is faster, re Category: FFS. Series: Master Series.
Gearless Direct Drive

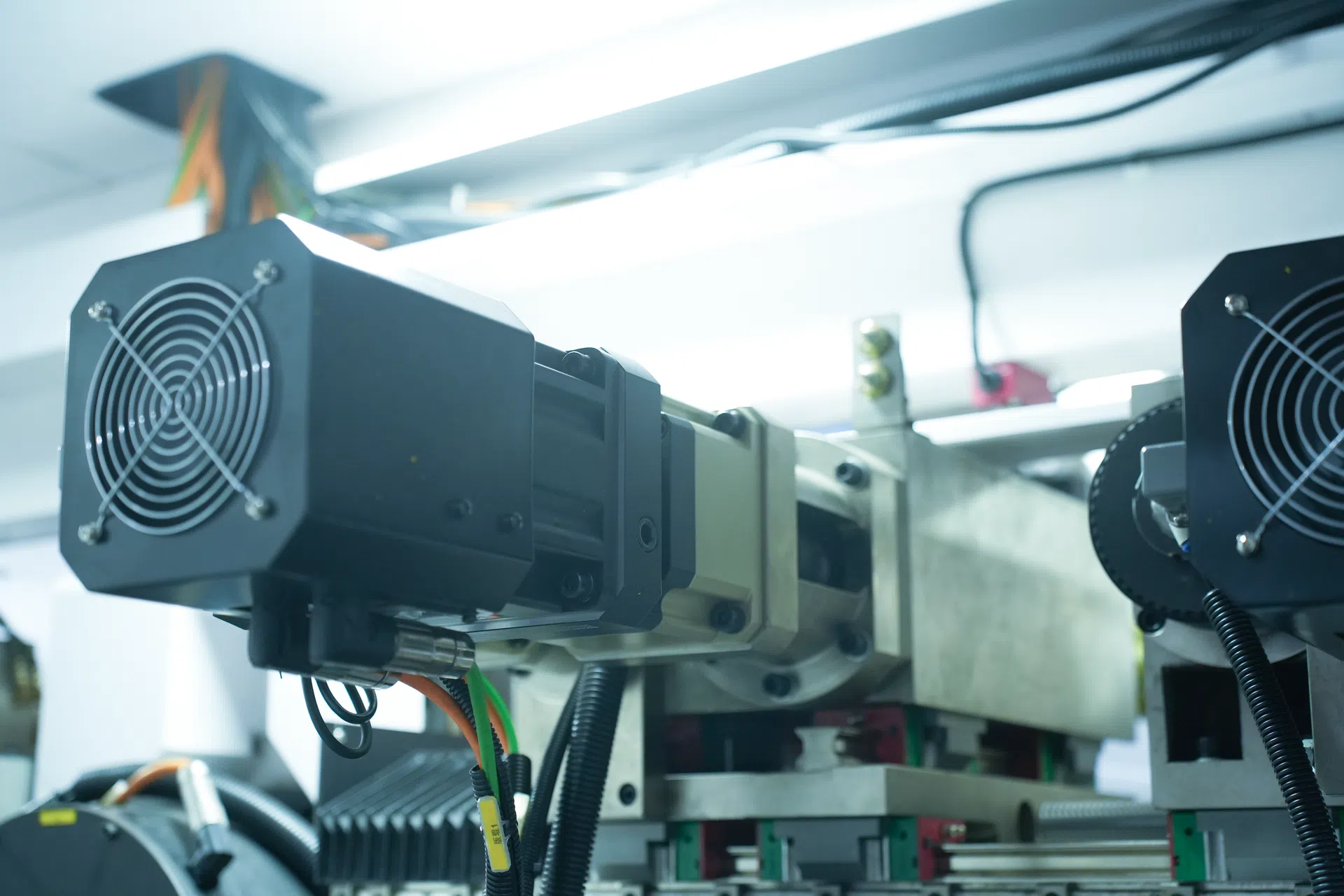

Independent servo motors for precise registration
Auto Registration
Camera-based perfect color alignment
Quick Job Change
Fast sleeve change minimizes downtime
Energy Efficient
Advanced drying reduces power consumption
- • What this machine is designed to do
- • Which substrates and applications it fits
- • How its specifications compare with alternatives
- • What buyers should confirm before quotation
Compare against similar models
Compare this model side by side with nearby alternatives right on the page, without jumping to the compare view.
4 Colors Full Servo Gearless Flexographic Printing Machine at a glance
The gearless sleeve flexo printing machine adopts an advanced full servo system. Compared with traditional gear transmission printing machines, it is faster, re Width: 1000-1600mm
| Model | YTE-800mm |
| Printing color | 4 colors |
| Max.Width of Printing | 760mm |
| Machinery mechanical speed | 420m/min |
| Max.Speed of Material Printing | 350-400m/min,according to different material and print design |
| Material | FFS |
| Max.Printing Length (Repeat) | 400mm-800mm |
| Printing Cylinder | Sleeve type |
| Ceramic Anilox Roller | Sleeve type |
| Max.Unwind /Rewind Dia | Φ800mm |
| Adhesive Tape Thickness | 0.38mm |
| Thickness of Plate | 1.7mm,1.14mm,2.84mm,2.28mm Or as your request |
| Registration Precision | ±0.08mm |
| Heating Method | Electric heating |
| Ink | Water base ink or solvent ink |
| Power | Voltage:380V,3PH,50HZ/60HZ |
The gearless sleeve flexo printing machine adopts an advanced full servo system. Compared with traditional gear transmission printing machines, it is faster, re Category: FFS. Series: Master Series.
4 Colors Full Servo Gearless Flexographic Printing Machine | Master Series Lishg Master-41200F (For FFS Heavy-duty Films)
Professional 4-color gearless flexo printing equipment specially designed for FFS heavy-duty packaging films. This sleeve-type high-speed flexo press features automatic camera registration, dedicated for FFS film, PE film, plastic heavy-duty film and industrial packaging production worldwide.
Core Advantages For FFS Film Printing
High printing speed up to 450–500 m/min, ideal for high-volume FFS heavy-duty film production, 60% faster than traditional gear-driven flexo machines
Precise register accuracy up to ±0.08 mm via camera auto-registration, ensures stable printing quality for thick FFS films and reduces defect rate below 0.3%
Full servo gearless drive structure eliminates gear wear, suitable for long-term high-load operation of FFS film printing, cuts annual maintenance costs by 70%
Quick-change sleeve design completes full 4-color job switch within 8 minutes, highly efficient for FFS film roll orders
Professional for FFS film: compatible with multi-layer co-extruded PE, LLDPE, LDPE, mPE FFS heavy-duty films, plastic packaging films and industrial packaging substrates
Max material width up to 1600 mm, effective printing width 1160 mm, supports large-format FFS heavy packaging film production
Belonging to LISHG Master Series, this 4-color full servo gearless flexo press is professionally engineered for FFS heavy-duty film manufacturers, plastic packaging plants and industrial packaging factories. Equipped with independent servo motors and fully automatic camera registration system, it abandons conventional gear transmission to deliver stable high-speed performance for thick FFS films. Supported by energy-saving drying system and standard sleeve structure, the machine balances high efficiency and low operation cost. As a direct manufacturer, we deliver cost-effective and reliable equipment for global FFS packaging clients.
Certifications & Company Strength
With over 18 years of experience in R&D and production of flexo printing machinery for flexible & FFS packaging films, we have built a solid reputation as a reliable global supplier. All our equipment undergoes strict quality inspection and holds internationally recognized certifications.
Authorized Certifications: CE, ISO9001, SGS
Independent Intellectual Property: 32+ patents for gearless drive and servo control technology
Global Business Layout: Products exported to more than 40 countries, over 600 units running on site
Local After-sales Support: Service teams stationed in Europe, Southeast Asia and the Middle East
Machine Structure & Configuration (For FFS Films)
Every component is elaborately designed for FFS heavy-duty film printing, to reduce overall operating costs, simplify operation and ensure long-term stable operation. The complete production line adapts to various thick plastic films and FFS packaging materials.
Section |
Main Components |
Operational Benefits |
|---|---|---|

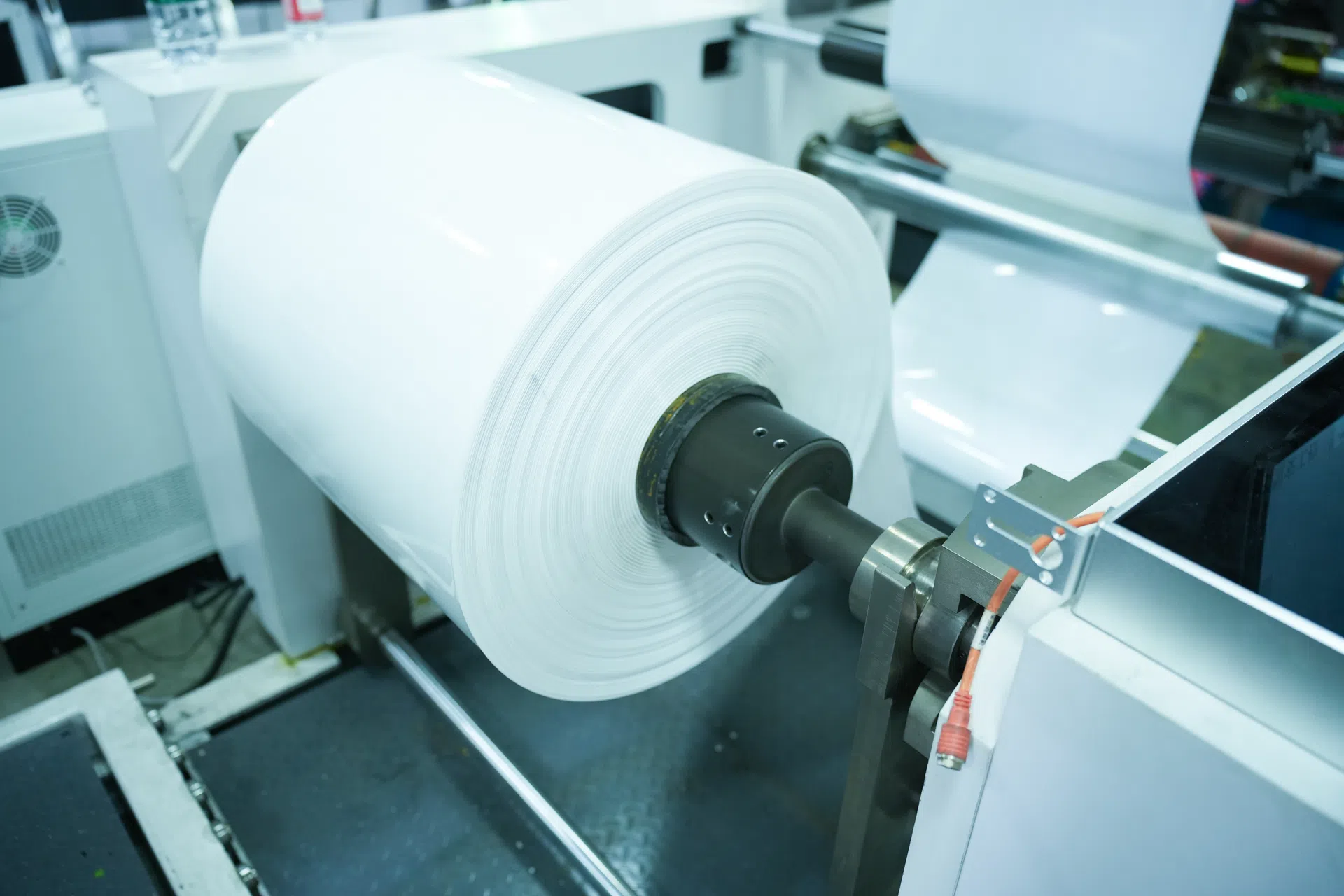

Unwinding Unit |

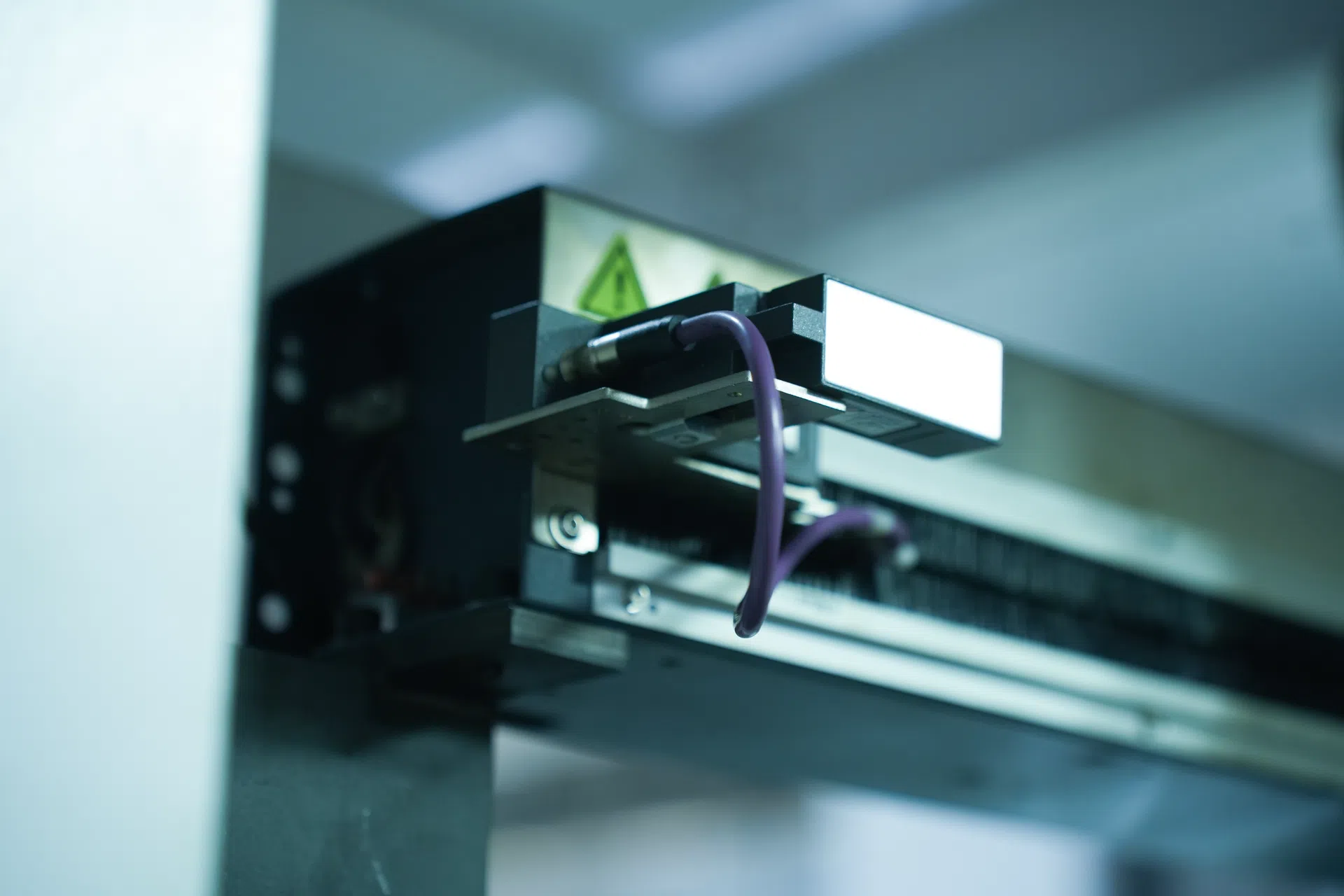

Shaftless hydraulic chuck, automatic web guide, load cell tension controller |
Max web width 1600 mm, stable tension control for thick FFS films, prevents deviation, stretching and wrinkling |

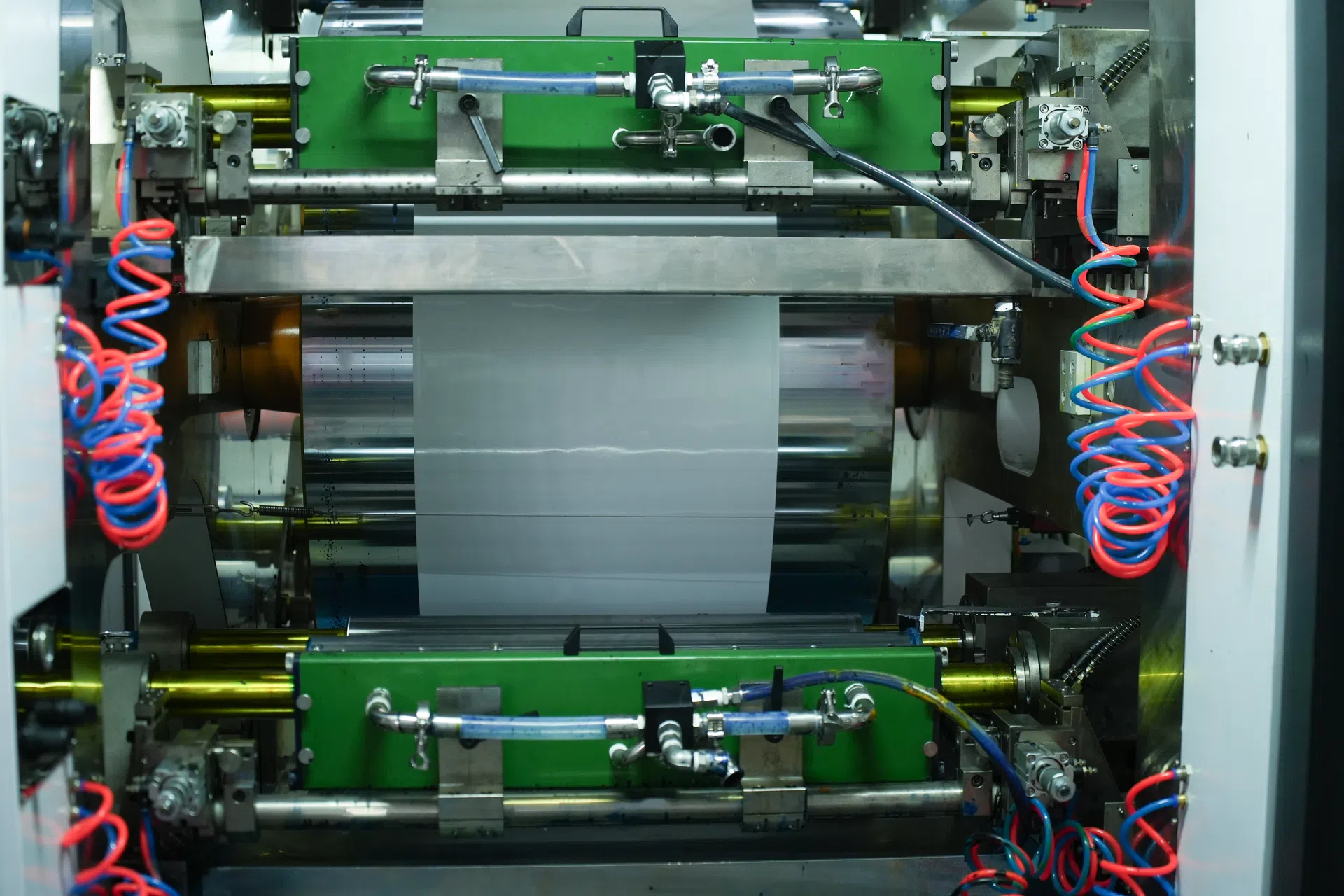

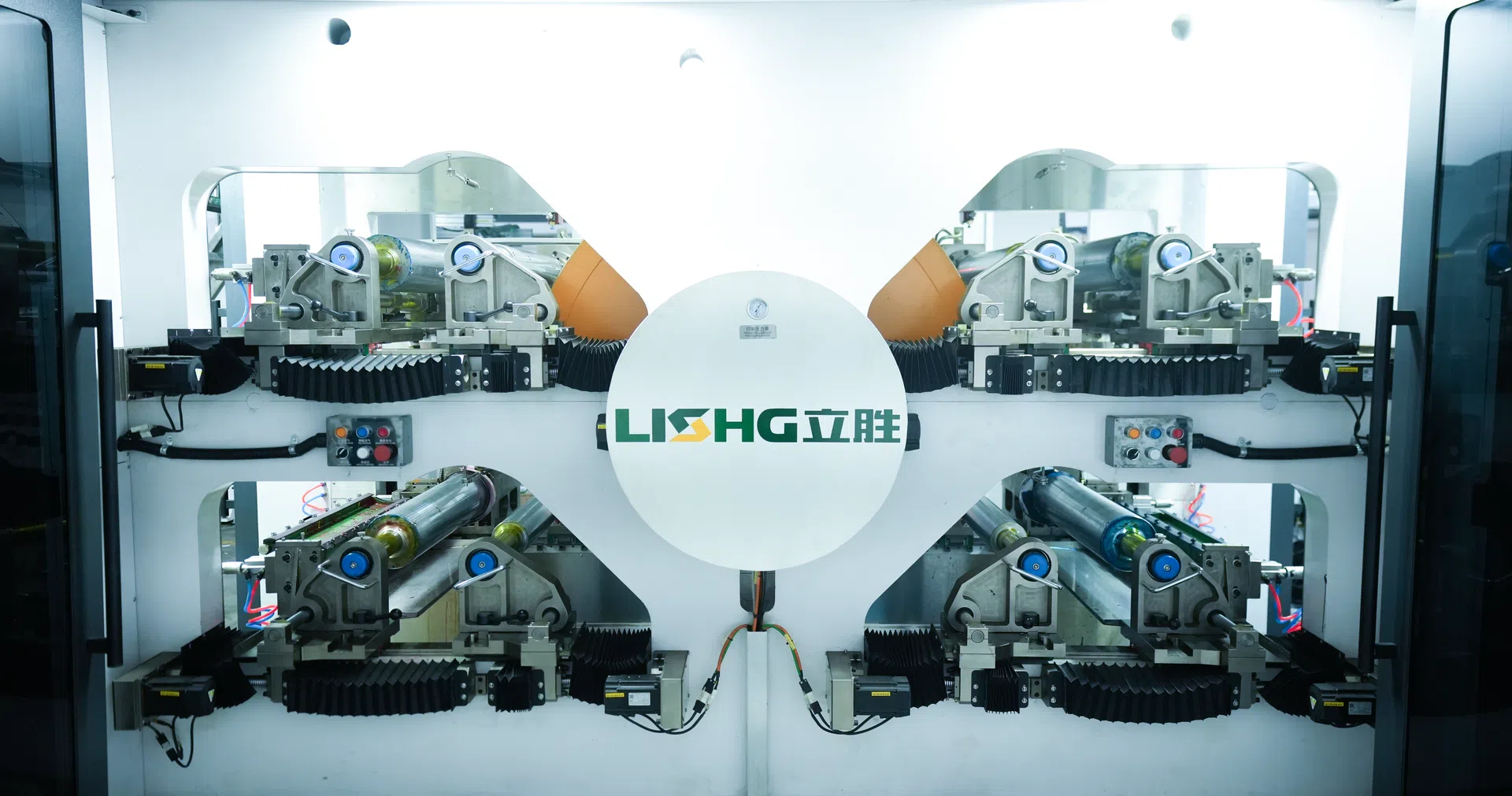

Printing Unit |

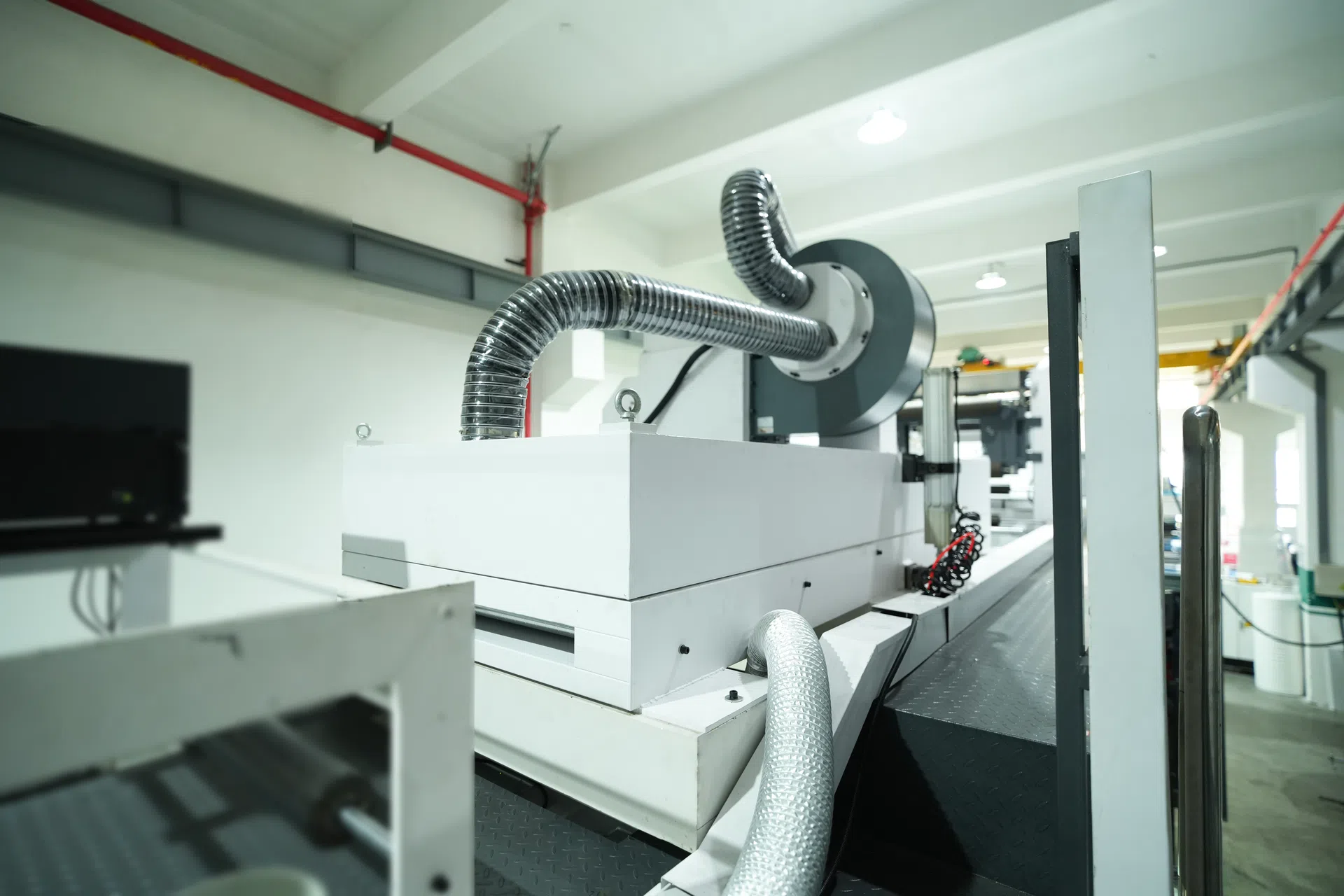

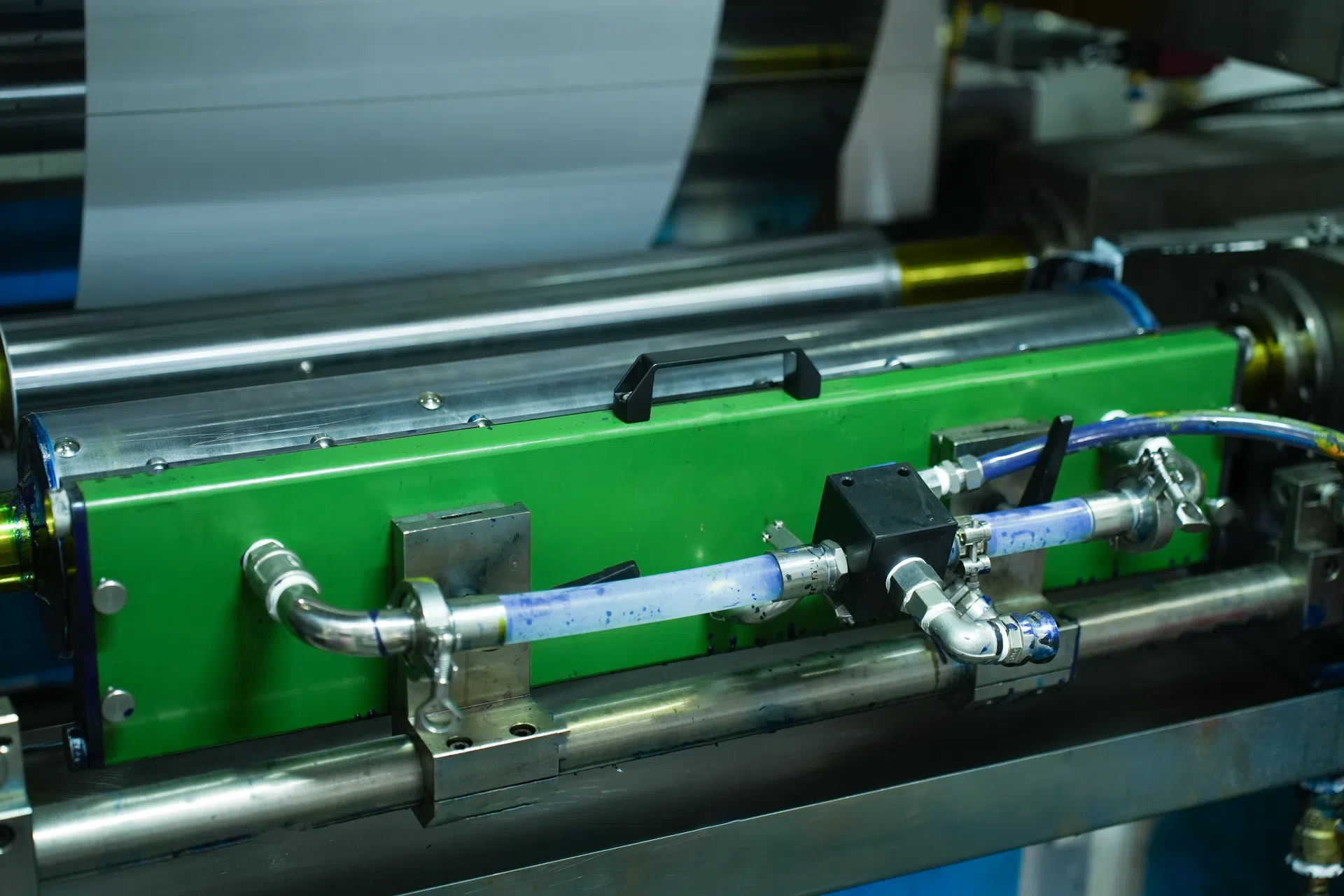

4 sets of independent servo drive, replaceable sleeves, enclosed doctor blade chamber, inter-color drying oven |
Fast job replacement, 12% ink consumption reduction, high-quality printing for FFS heavy-duty films |

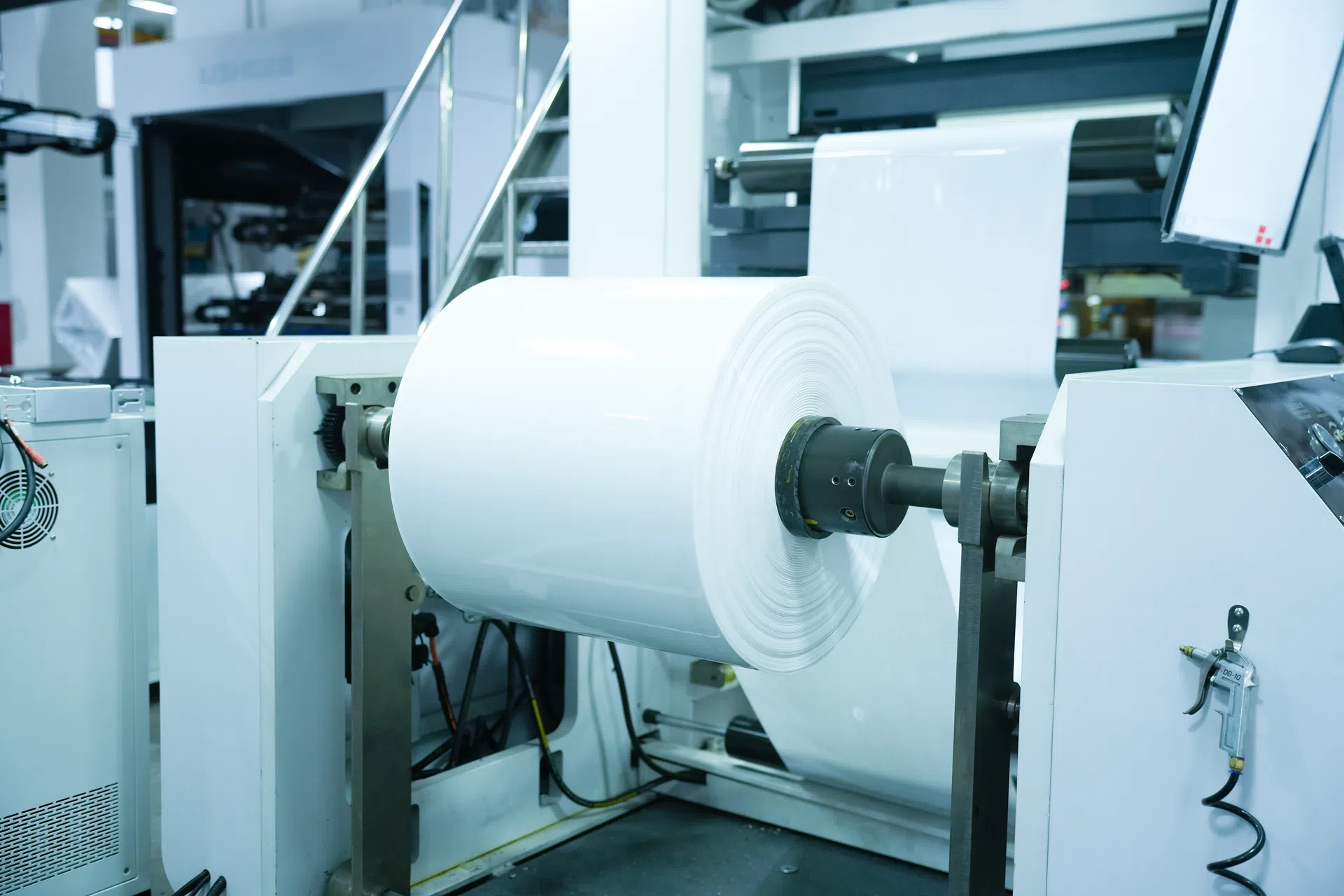

Rewinding Unit |
Taper tension rewinder, edge correction device, pneumatic shaft |
Neat and flat finished FFS film rolls, easy for downstream FFS packaging production |
The gearless servo drive eliminates mechanical backlash effectively, delivering outstanding printing performance on FFS heavy-duty films, multi-layer co-extruded PE films, LDPE, LLDPE and industrial plastic films. The built-in visual registration system realizes fully automatic calibration, keeping every roll of FFS film finished products compliant with strict quality standards for heavy packaging industry.

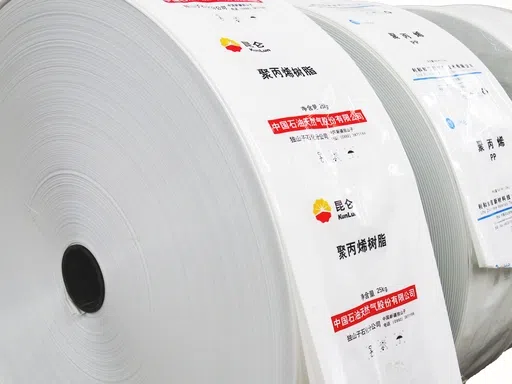

Machine Detail Gallery
Take a closer look at core components, control panel, printing groups and sleeve structure specially designed for FFS film printing.
Technical Parameters
Item |
Specification |
|---|---|
Model |
YTE-4 Color / Lishg Master-41200F (For FFS Films) |
Max Material Width |
1600 mm |
Printing Color |
4 Colors |
Max Printing Width |
1160 mm |
Mechanical Speed |
450 m/min |
Printing Speed |
450 - 500 m/min |
Main Application Materials |
FFS Heavy-duty Films, PE, LDPE, LLDPE, mPE, Multi-layer Co-extruded Films |
Repeat Length |
400 mm - 800 mm |
Printing Cylinder & Anilox Roller |
Sleeve type |
Max Unwind / Rewind Diameter |
Φ800 mm |
Registration Precision |
±0.08 mm |
Heating Method |
Electric heating |
Available Ink Type |
Water base ink / Solvent ink |
Power Supply |
380V, 3PH, 50HZ/60HZ |
Optional Upgrade Modules For FFS Film Production
We provide diversified customized configurations to expand FFS film production capacity and create more profit points for your business.
Upgrade Option |
Value & Advantage |
|---|---|
Additional Color Units |
Produce multi-color FFS packaging films without adding extra equipment |
Auto Flying Splice |
Realize non-stop production for FFS film rolls, eliminate roll changing downtime |
Cold Foil / Laminating Unit |
Add inline finishing for FFS heavy packaging films, enhance product added value |
UV Curing System |
Support high-speed UV printing for special FFS film materials |
Web Cleaning System |
Remove surface dust of FFS films to improve printing yield |
Automatic Ink Viscosity Control |
Stable color performance and reduce ink waste in FFS film printing |
Remote Maintenance & Diagnostics |
Remote troubleshooting to shorten equipment downtime for FFS production lines |
Standard Operating Workflow For FFS Film Printing

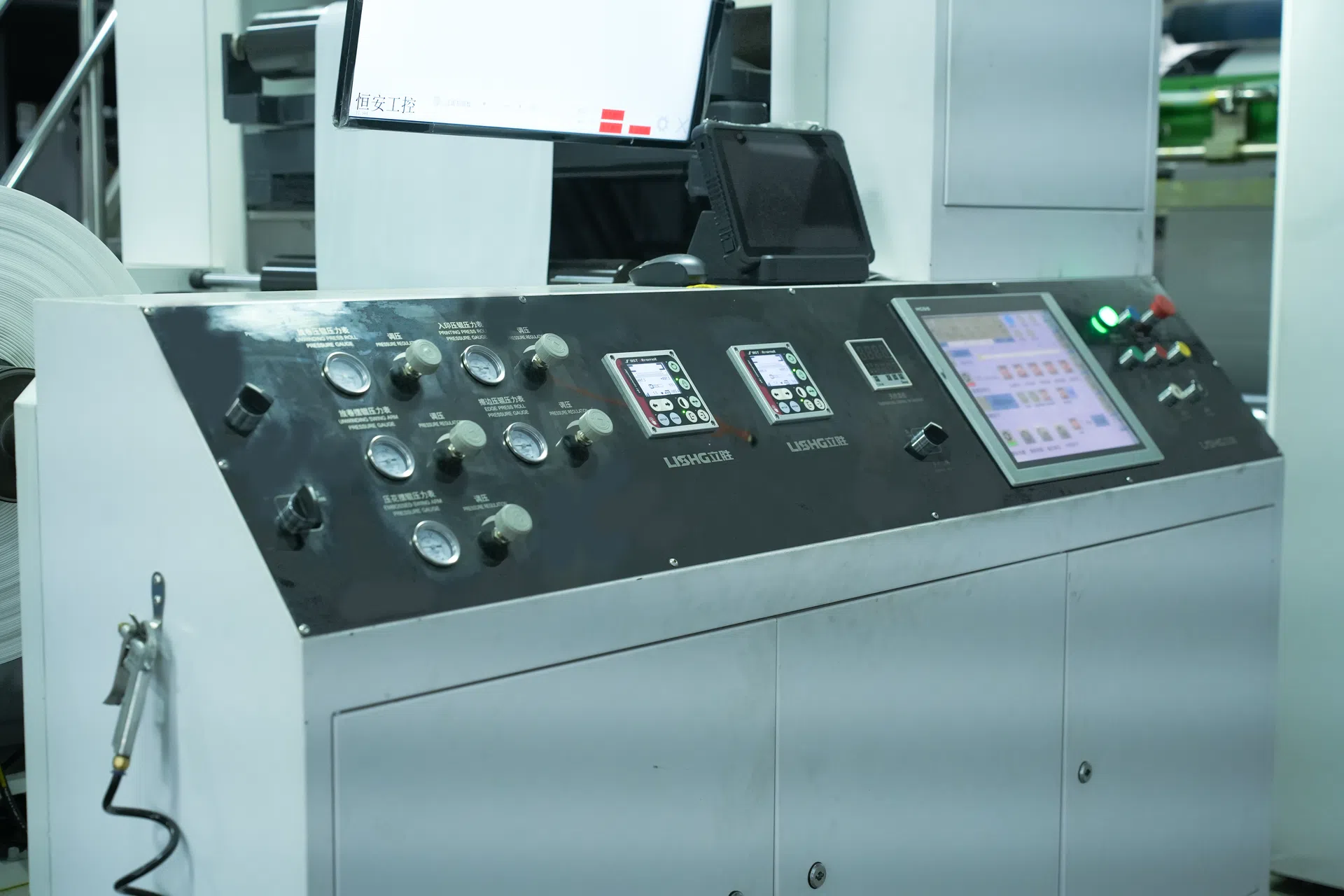

The machine adopts fully digital control system, easy to operate and suitable for mass and high-efficiency FFS heavy-duty film production.
Recipe Storage & Recall: Save all FFS film production parameters for one-click loading of historical orders
Sleeve & Ink Replacement: Tool-free disassembly, fast switching for different FFS film printing tasks
Automatic Tension Control: Keep thick FFS films stable during feeding and rewinding
One-touch Pre-registration: Complete color alignment automatically via high-definition camera
High-speed Intelligent Production: Real-time registration correction during FFS film formal operation
Finished Roll Unloading & Reset: Simple operation to start the next FFS film production cycle quickly
Customer Reviews (FFS Film Manufacturers)
“Our FFS film production efficiency increased by 120% after using this Master Series flexo press. The stable tension control and quick changeover are perfect for heavy-duty PE film printing.”
— FFS Packaging Factory Manager, Indonesia
“The equipment runs stably with excellent printing precision on thick FFS films. Our global heavy packaging clients are highly satisfied with the final products.”
— Plastic Film Printing Plant Owner, Poland
If you want to learn more about how this 4-color gearless flexo press boosts your FFS heavy-duty film production capacity and profit, please contact our team. We can provide customized quotations, complete specification documents and remote video demonstrations.
Normal running speed is 450–500 m/min, with a maximum mechanical design speed of 500 m/min.
