8 Colors Full Servo Gearless Flexographic Printing Machine
The gearless sleeve flexo printing machine adopts an advanced full servo system. Compared with traditional gear transmission printing machin
Gearless Direct Drive
Independent servo motors for precise registration
Auto Registration
Camera-based perfect color alignment
Quick Job Change
Fast sleeve change minimizes downtime
Energy Efficient
Advanced drying reduces power consumption
Compare against similar models
Compare this model side by side with nearby alternatives right on the page, without jumping to the compare view.
| Model | YTE-61200mm |
| Max Width Of Material | 1200mm |
| Printing color | 8 colors |
| Max.Width of Printing | 1160mm |
| Machinery mechanical speed | 500m/min |
| Max.Speed of Material Printing | 450m/min,according to different material and print design |
| Material | Paper PE PET BOPP PVC |
| Max.Printing Length (Repeat) | 400mm-1600mm |
| Printing Cylinder | Sleeve type |
| Ceramic Anilox Roller | Sleeve type |
| Max.Unwind /Rewind Dia | Φ800mm |
| Adhesive Tape Thickness | 0.38mm |
| Thickness of Plate | 1.7mm,1.14mm,2.84mm,2.28mm Or as your request |
| Registration Precision | ±0.08mm |
| Heating Method | Electric heating |
| Ink | Water base ink or solvent ink |
| Power | Voltage:380V,3PH,50HZ/60HZ |
8 Color Full Servo Gearless Paper Flexo Press | High Speed Paper Flexographic Printing Machine
8 color full servo gearless paper flexo press, high-speed paper flexographic printing machine, paper sleeve flexo press, automatic register flexo machine for paper, B2B flexo press manufacturer
Detailed Introduction: Structure, Options & Workflow
Why This 8-Color Full Servo Gearless Flexo Press Is Your Next Smart Investment for Paper Printing
8 Color Full Servo Gearless Paper Flexo Press for Paper Cup, Label & Carton Printing
For paper packaging converters, label printers, and folding carton manufacturers targeting shorter runs with higher margins, this full servo gearless flexographic printing machine — dedicated to paper substrates — delivers unmatched productivity. Engineered for 450–500 m/min high-speed paper printing, it combines quick-change sleeve technology with a fully automatic camera-based registration system. As a China-based manufacturer offering factory-direct pricing, our 8-color gearless paper flexo press eliminates traditional gear trains, slashing maintenance costs and delivering registration accuracy of ±0.08 mm. Read on to explore the machine’s robust structure, available upgrade options, and lean operating workflow — all designed to maximize your return on investment in the competitive paper packaging and label market.
Machine Structure: Built for 24/7 High-Speed Paper Flexo Printing
Every component of this high-speed gearless paper flexo press is engineered for low total cost of ownership, ease of operation, and maximum uptime. The layout, from unwind to rewind, is optimized for a wide range of paper-based materials used in labels, flexible paper packaging, paper cups, and carton applications.
Station | Key Components | What This Means for Your Business |
|---|---|---|

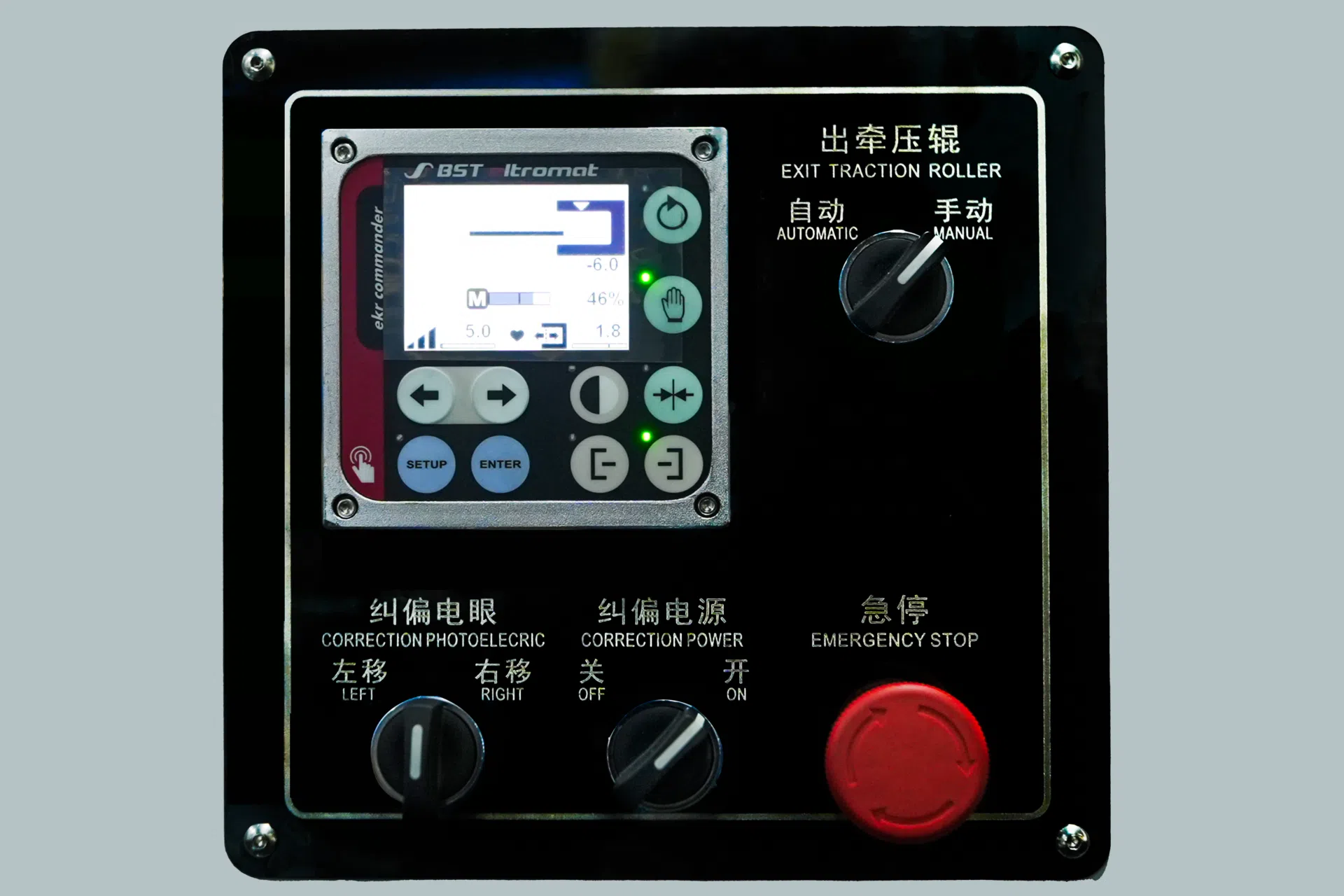

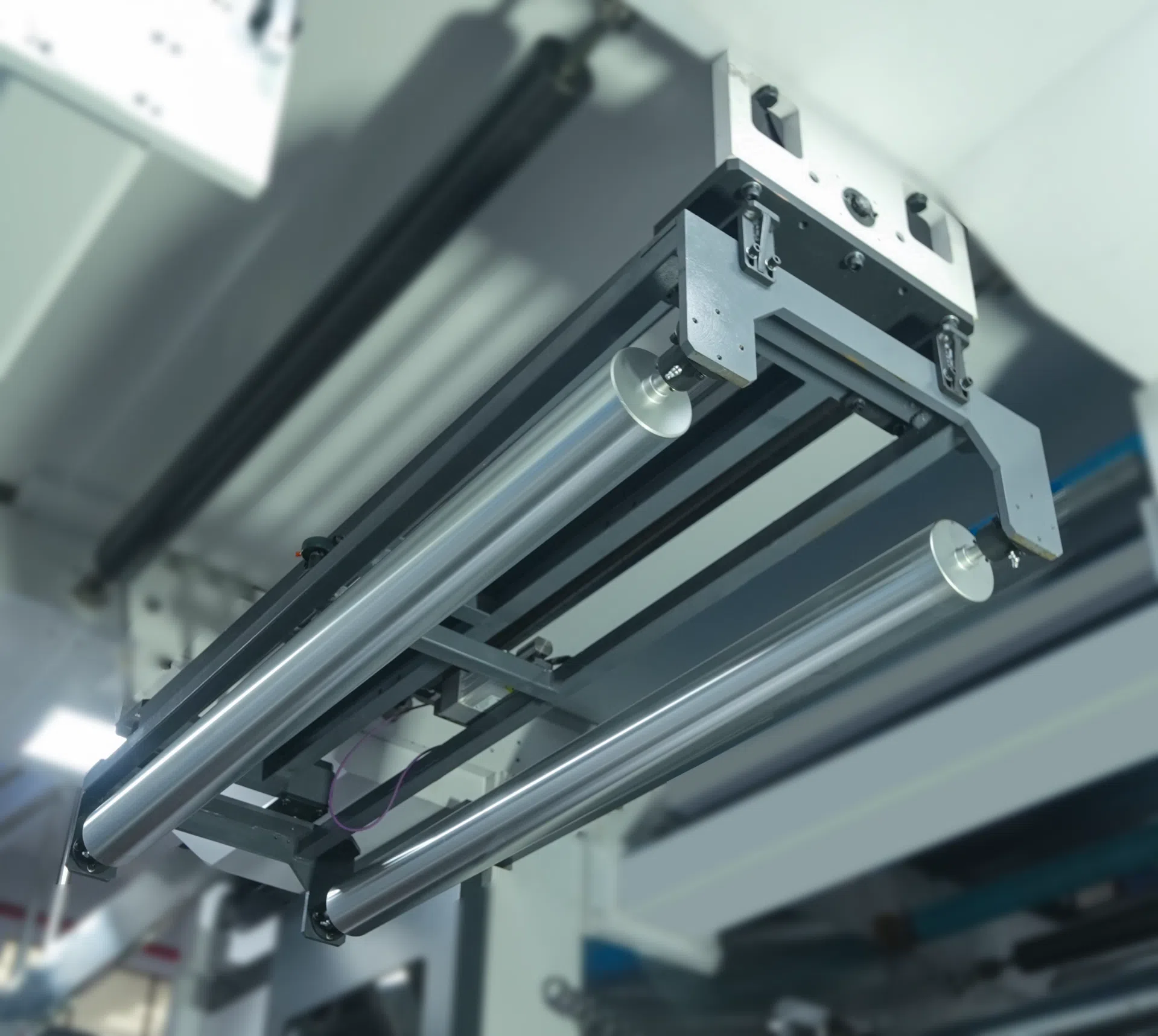

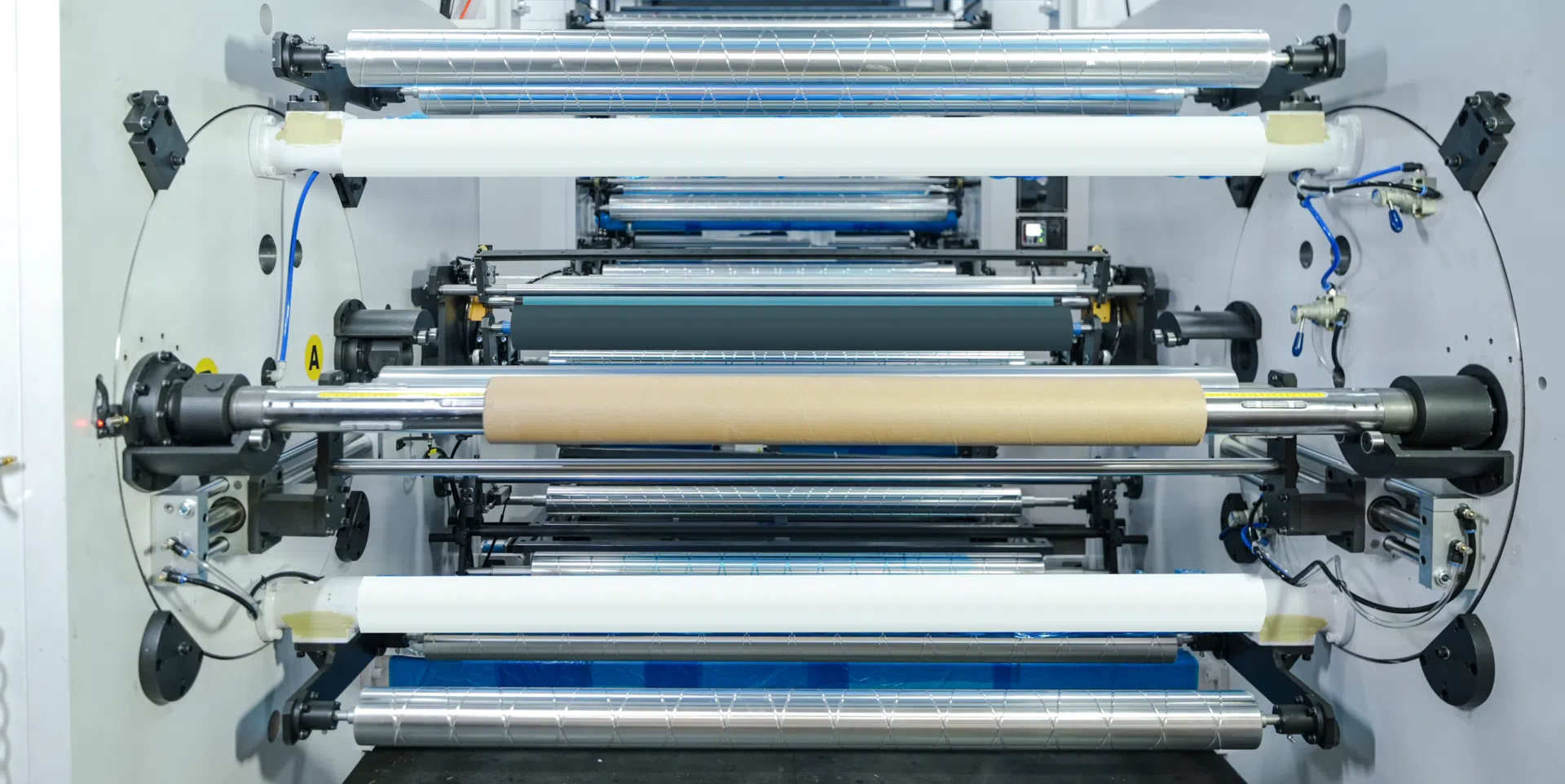

Unwinding Section | Shaftless hydraulic chuck, automatic web guide skateboard, load cell tension controller | Minimizes paper waste through precise lateral alignment; handles a maximum web width of 1200 mm. The automatic tension control ensures smooth feeding of sensitive paper webs, preventing tears and wrinkles — a critical factor in high-quality paper packaging printing. |

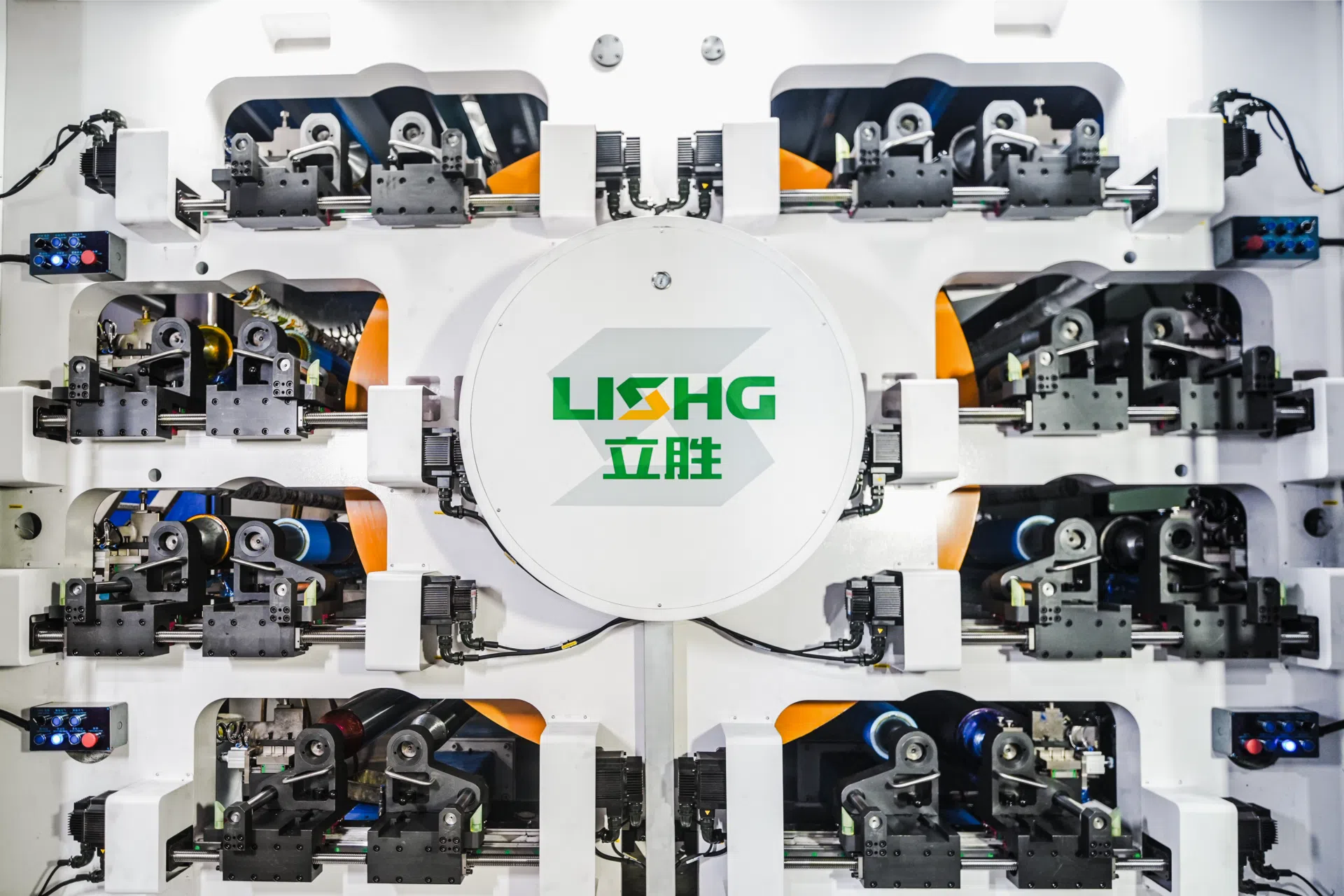

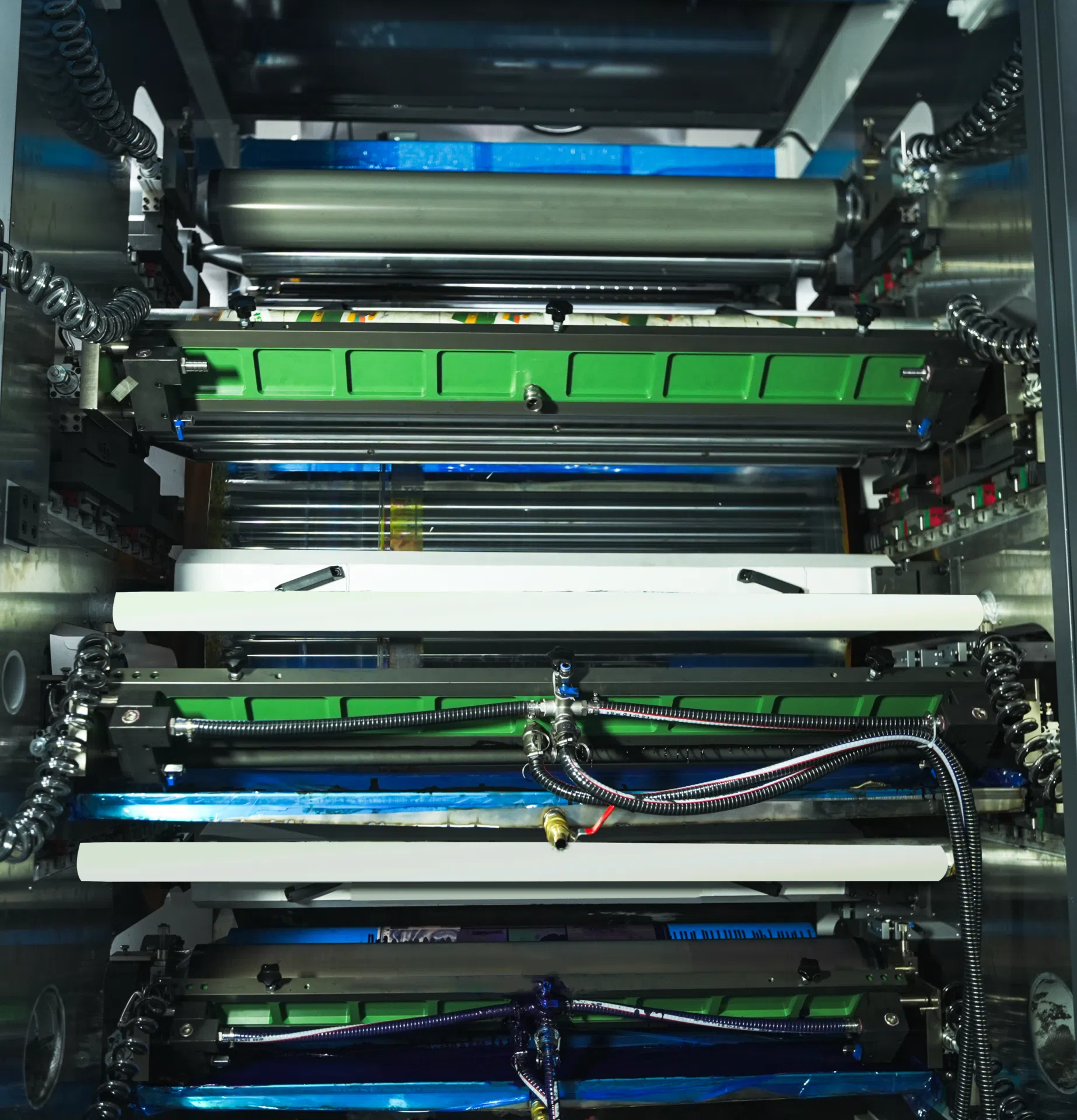

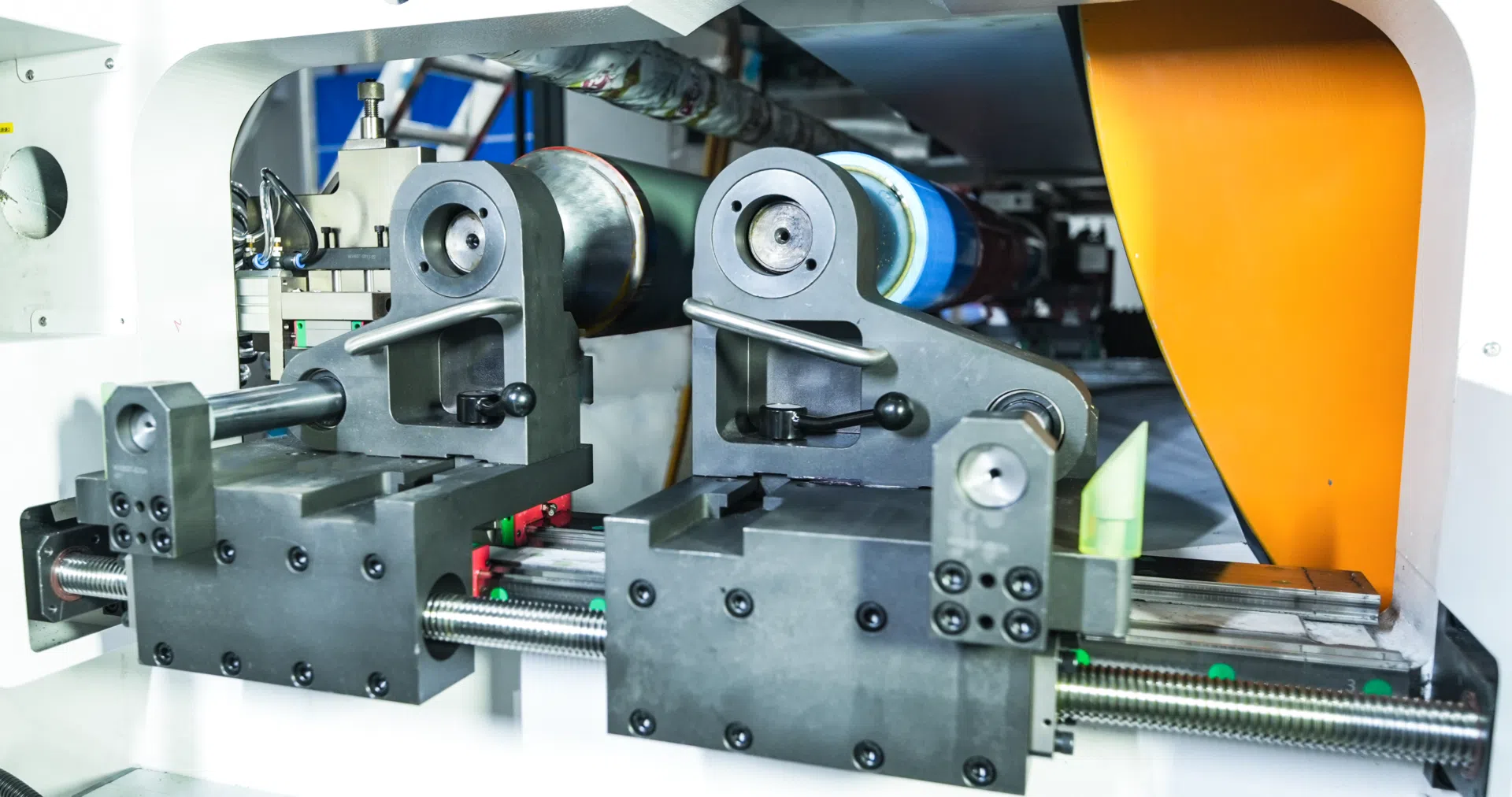

Printing Section | 8 independent full servo direct-drive units, each with quick-change plate sleeve, ceramic anilox sleeve, enclosed doctor blade chamber, servo motor, and inter-color hot air oven | Quick job changeover is completed in minutes per unit. The servo gearless direct-drive design means zero gear wear, no oil lubrication, and absolute repeat length consistency from 400 mm to 800 mm. The enclosed ink chamber system suppresses solvent or water evaporation, keeping your ink consumption and costs low. Inter-color ovens provide fast, energy-efficient drying, enabling the press to run at 450–500 m/min on paper without blocking or smudging. |

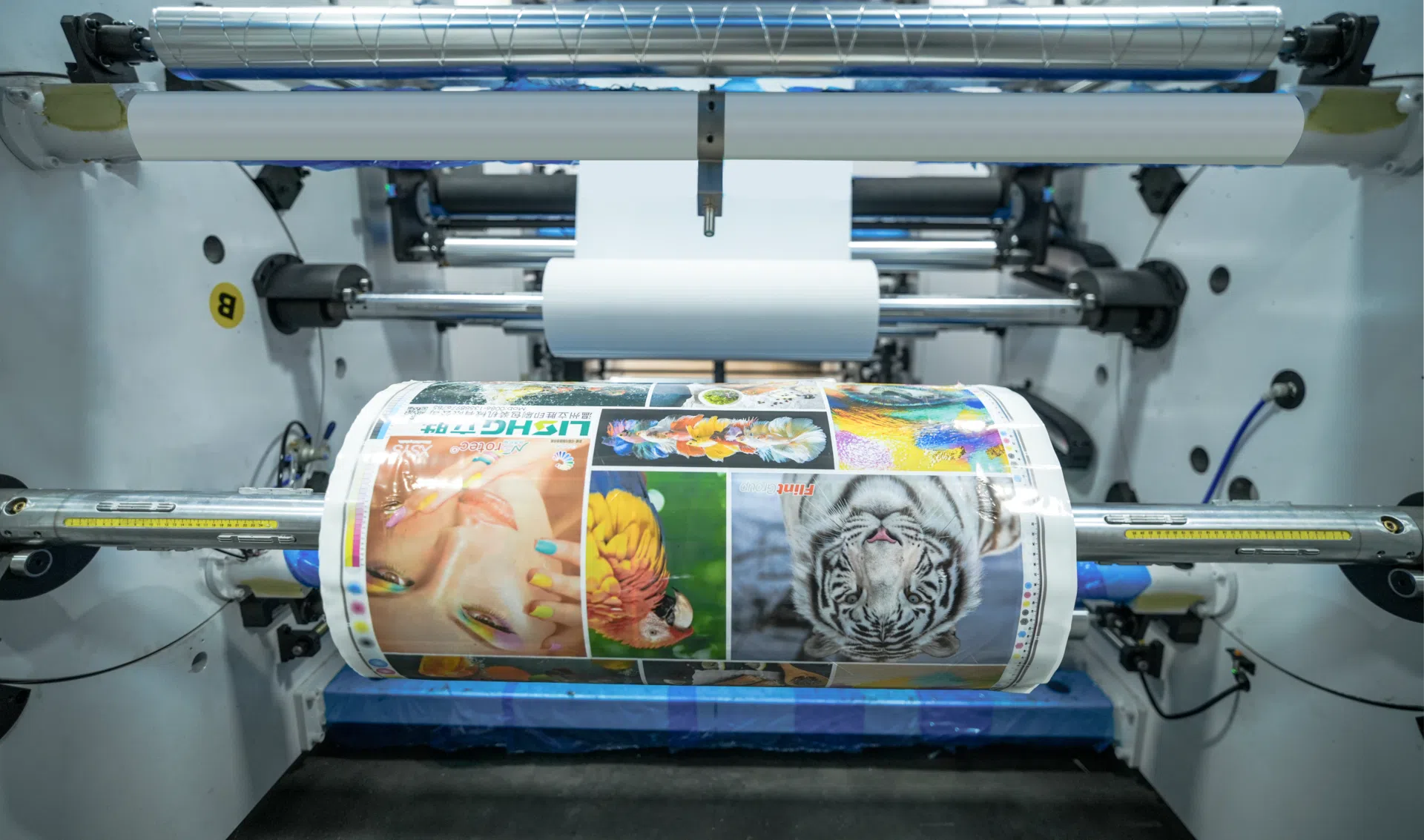

Rewinding Section | Taper-tension centre rewind, edge guide, pneumatic shaft | Delivers stable, wrinkle-free rewind rolls ready for downstream die-cutting, sheeting, or bag-making. This is essential for paper label and folding carton converters who require perfect roll formation for subsequent finishing processes. |
Gearless Technology Advantage for Paper: Independent servo motors on each print deck completely eliminate mechanical gear backlash, making this stack-type paper flexo press a perfect fit for demanding process-color work on coated papers, thermal papers, and lightweight kraft. The integrated camera-based automatic registration system ensures every meter of paper output meets the tight tolerances your brand customers demand — without manual intervention.
Optional Upgrades: Scale Your Paper Printing Capability
A smart investment is one that grows with your business. This 8-color full servo paper flexo machine can be customized with the following options to help you capture new, high-margin revenue streams in the paper packaging sector. Contact us for a custom paper flexo press configuration tailored to your factory layout and product portfolio.
Option | ROI-Focused Value |
|---|---|
Additional Color Units (10+ Colors) | Take on complex, high-value paper packaging jobs — such as multi-color paper cups or gift wrap — without investing in a second press. |
Auto Flying Splice (Non-Stop Unwind/Rewind) | Achieve true continuous production for long-run paper label or paper bag orders, eliminating roll-change downtime completely. |
Cold Foil / Laminating Unit | Add in-line value-added finishing on paper — cold foil stamping or adhesive lamination — to command premium prices from brand owners. |
UV Curing System | Expand into UV flexo printing for specialty paper applications and high-gloss effects, broadening your customer base. |
Web Cleaning System | Ensure pristine print quality on dust-sensitive paper surfaces, drastically reducing customer rejections and material waste. |
Automatic Ink Viscosity Control | Guarantees consistent color density on paper run after run, with less operator intervention and significantly reduced ink waste. |
Remote Maintenance & Diagnostics | Fast troubleshooting and parameter tuning via secure internet connection, minimizing downtime for overseas customers and reducing service costs. |
Operating Workflow: From Job Storage to Finished Paper Rolls in Record Time
This user-friendly full servo paper flexo press is designed for converters where a single operator or a small crew handles frequent job changeovers. The fully digital workflow reduces setup time and paper waste, making it the go-to solution for short-run paper packaging and label printing.
Digital Job Recall

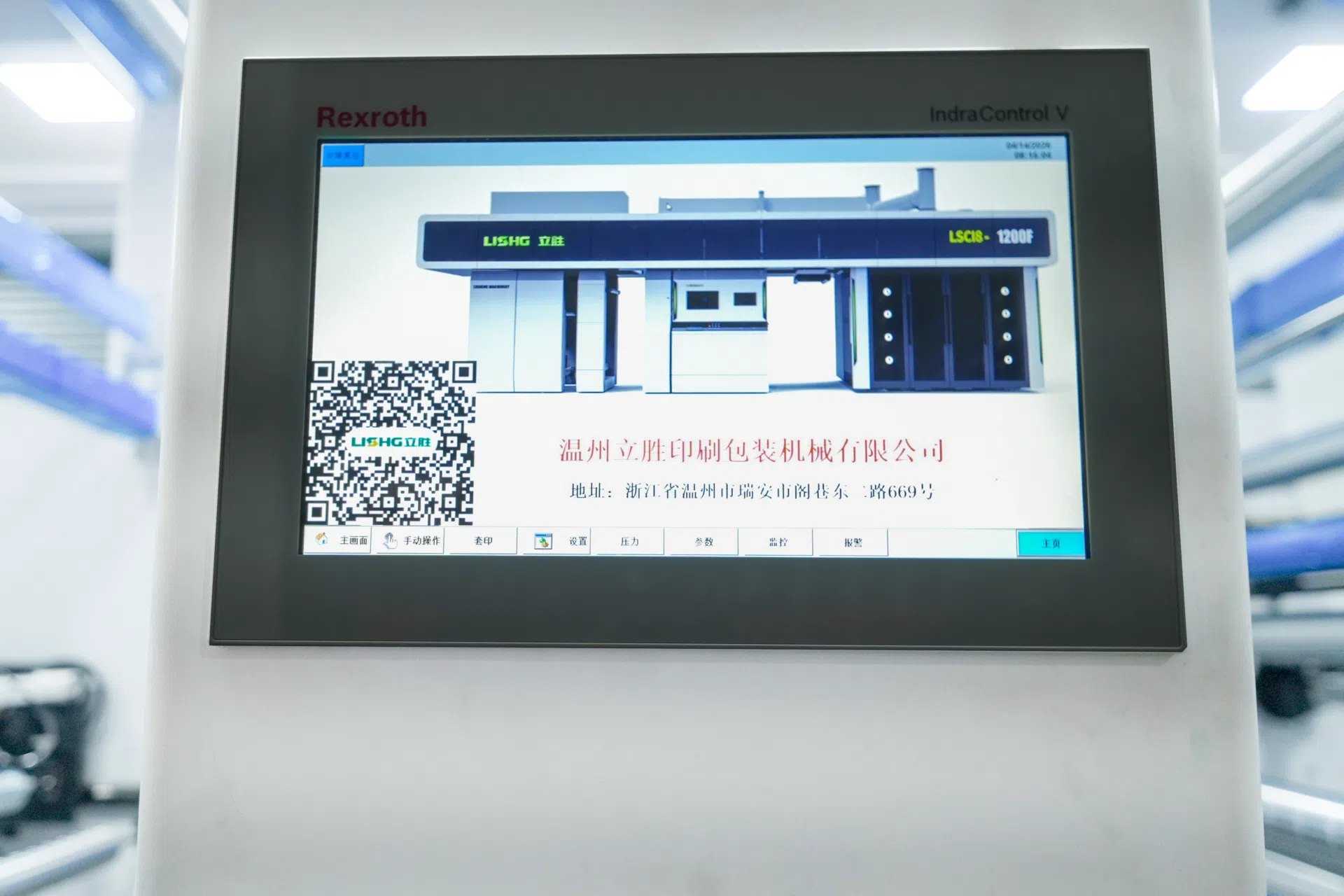

The Windows-based central console stores unlimited job recipes. Simply load the parameters — repeat length, tension zones, oven temperature, print speed curve — from the previous paper job. No guesswork. For a new order, input the repeat length, and the servo motors position the sleeves automatically.
Rapid Sleeve & Ink Changeover
Using compressed air, one person extracts the ceramic anilox sleeve and plate sleeve from the print unit without any tools. Slide in the sleeves for the next paper job, snap in the wash-up-friendly enclosed doctor blade chamber, and pump in water-based or solvent ink. An entire 8-color changeover is executed during a normal break, dramatically increasing machine uptime and throughput.
Web Threading & Tension Setup
After threading the paper substrate through the guide rollers, printing nips, and inter-color ovens, attach it to the rewind core. The digital tension controller then automatically maintains the precise web tension you pre-set, from the unwind right through to the rewind — critical for maintaining ±0.08 mm registration at speeds of 450–500 m/min on lightweight or extensible papers.
One-Touch Pre-Register & Start
Press the auto pre-register button. The high-resolution camera scans the printed marks and brings all 8 colors into rough register within seconds. Run the press at jog speed to confirm solid ink coverage on your paper stock and fine-tune, then you are ready to accelerate.
High-Speed Automatic Register Production
Ramp up to your target 450–500 m/min printing speed (mechanical design speed up to 500 m/min). The closed-loop camera system monitors registration in real time, automatically making micro-corrections without stopping. This ensures you produce sellable paper prints from the first meter, slashing setup waste and boosting profitability on every job.
Roll Offloading
At your preset meter count or roll diameter, the machine alerts the operator. Cut, unload the finished paper roll with a pneumatic hoist, tape to a new core, and restart. If you have the optional flying splice unit, the change happens automatically at full production speed without any interruption — a game-changer for large paper packaging orders.
Instant Next-Job Reset
Repeat the process for the next paper job. Because all settings are digitally saved and sleeves are quickly swappable, moving between different repeat lengths and paper types is seamless. This makes the press ideal for the modern short-run paper packaging market, where agility and speed define profitability.
Ready to discuss how this gearless paper flexo press can increase your daily throughput and profit margins? Contact our team today for a tailored quotation, detailed specification sheet, and an on-site video demonstration. Let us show you why leading paper converters are upgrading to our factory-direct 8-color servo flexo machines.
