18% to 25% power saving. It eliminates mechanical gear friction loss, and servo motors only output required power based on actual running speed.
Master SeriesFFS
1 / 12
Main Display

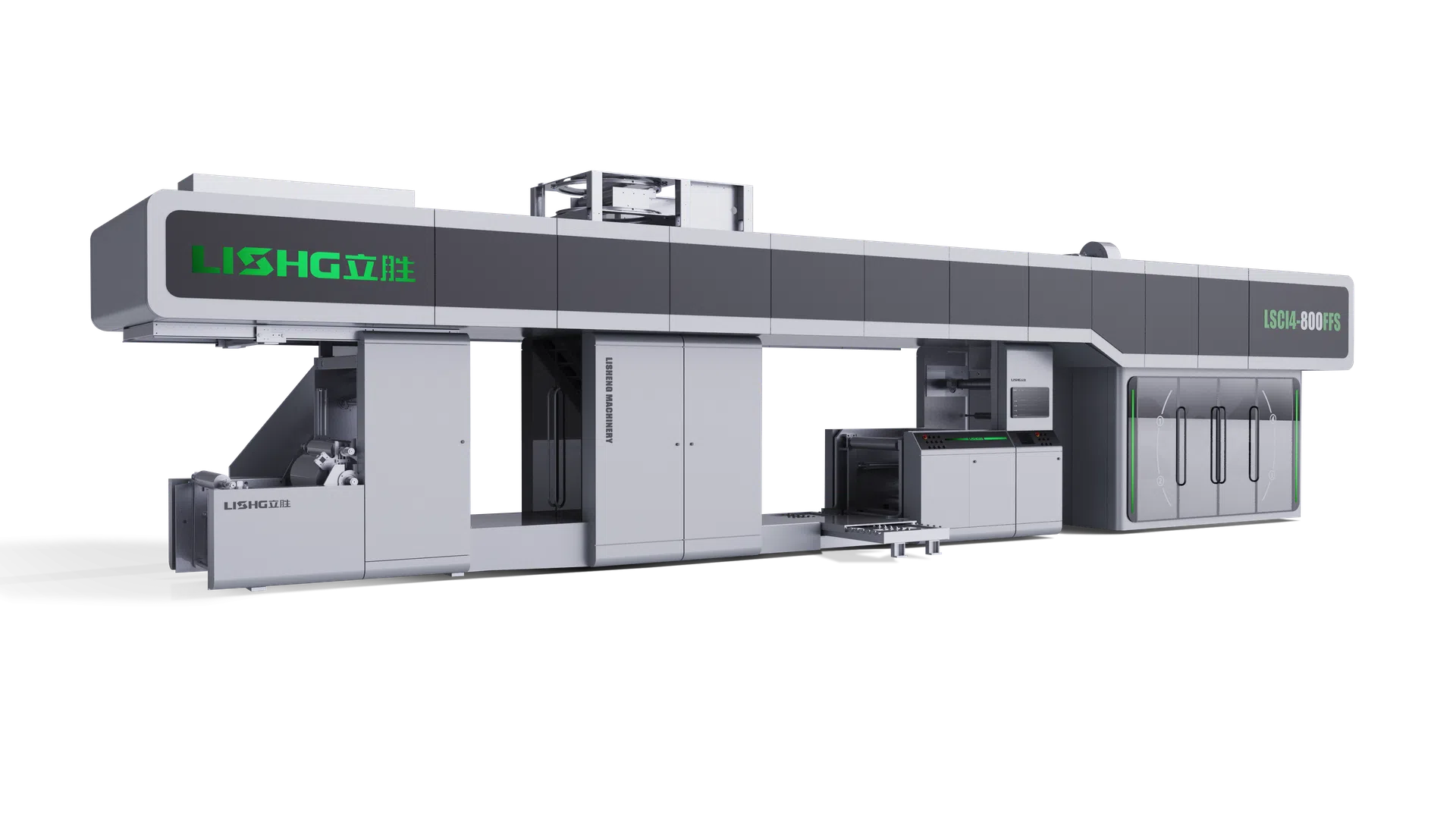

4 Colors Full Servo Gearless CI Flexographic Printing Machine (FFS)
Hover to zoom
Machine Overview
Master SeriesFFS
4 Colors Full Servo Gearless CI Flexographic Printing Machine (FFS)
Built with a full servo system, this gearless sleeve flexo printer for FFS film runs faster, enables automatic color registration and requires less maintenance
Max Speed
Custom
Printing
Configurable
Max Width
400-1600mm
Materials
FFS
Feature 01
Gearless Full Servo Drive
Gearless direct drive with independent servo motors, stable running for thick FFS film, no gear wear and low maintenance.
Feature 02
Built-in Edge Inserting
Original integrated edge inserting function, finish film edge processing during printing, save extra production process.
Feature 03
Inline Embossing Function
One-stop embossing available online, meet textured surface requirement of industrial heavy-duty packaging film.
Feature 04
Stable Thick Film Printing
150-200m/min customized stable speed, perfectly adapted to high-thickness FFS film, avoid film stretching and printing deviation.
Quotation checklist
Confirm these project details before requesting a proposal.
Substrate
FFS
Print width
Custom width
Color units
Project-specific
Series fit
Master Series
RFQ Quick Action
Send requirements and get a faster commercial response.
- What this machine is designed to do
- Which substrates and applications it fits
- How its specifications compare with alternatives
- What buyers should confirm before quotation
Compare with other models
与相近机型直接对比
在当前页面直接把本机型与相近机型并排对比，查看关键参数差异，不再跳转到对比页。
Current Product
4 Colors Full Servo Gearless CI Flexographic Printing Machine (FFS)
当前机型
系列Master Series
类别FFS
颜色数4
材料
自动化等级high
速度150-200 m/min
幅宽400-1600mm
候选机型
6 color gearless ci flexographic printing machine for flexible packaging
系列master
类别Paper
颜色数6
材料-
自动化等级high
速度 500m/min
幅宽400-1600mm
当前机型
4 Colors Full Servo Gearless CI Flexographic Printing Machine (FFS)
对比机型
6 color gearless ci flexographic printing machine for flexible packaging
系列
Master Series
master
类别
FFS
Paper
颜色数
4
6
材料
-
机型
CI flexo printing machine
CI flexo printing machine
速度
150-200 m/min
500m/min
油墨
solvent ink
water-based, solvent
AI summary
4 Colors Full Servo Gearless CI Flexographic Printing Machine (FFS) at a glance
Built with a full servo system, this gearless sleeve flexo printer for FFS film runs faster, enables automatic color registration and requires less maintenance Width: 400-1600mm
Primary use
FFS
Series
Master Series
Max speed
Custom
Materials
Project-specific
What is it best for?Which materials fit it?How fast can it run?Why choose this series?
Product Details
Module views for engineering review.
10 Detail Views

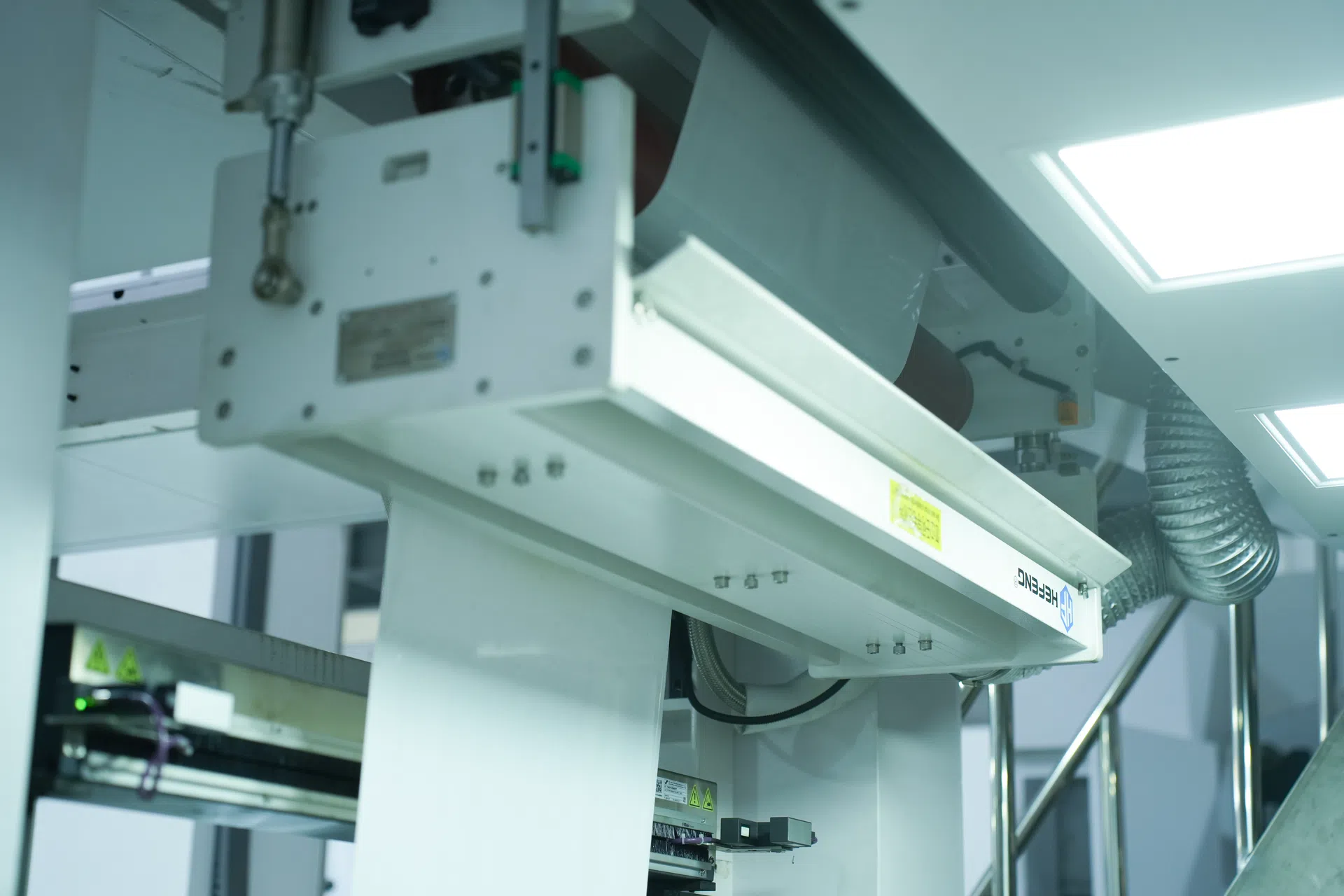

Corona Treater
Current View
Corona Treater
1 / 10
Module navigator
Choose a detail view
10 views
Technical Parameters
Specification matrix for procurement review.
16 Items
Custom build available
Specification matrix
| Model | YTE-800mm |
| Printing color | 4 colors |
| Max.Width of Printing | 760mm |
| Machinery mechanical speed | 420m/min |
| Max.Speed of Material Printing | 150-200m/min,according to different material and print design |
| Material | FFS |
| Max.Printing Length (Repeat) | 400mm-1600mm |

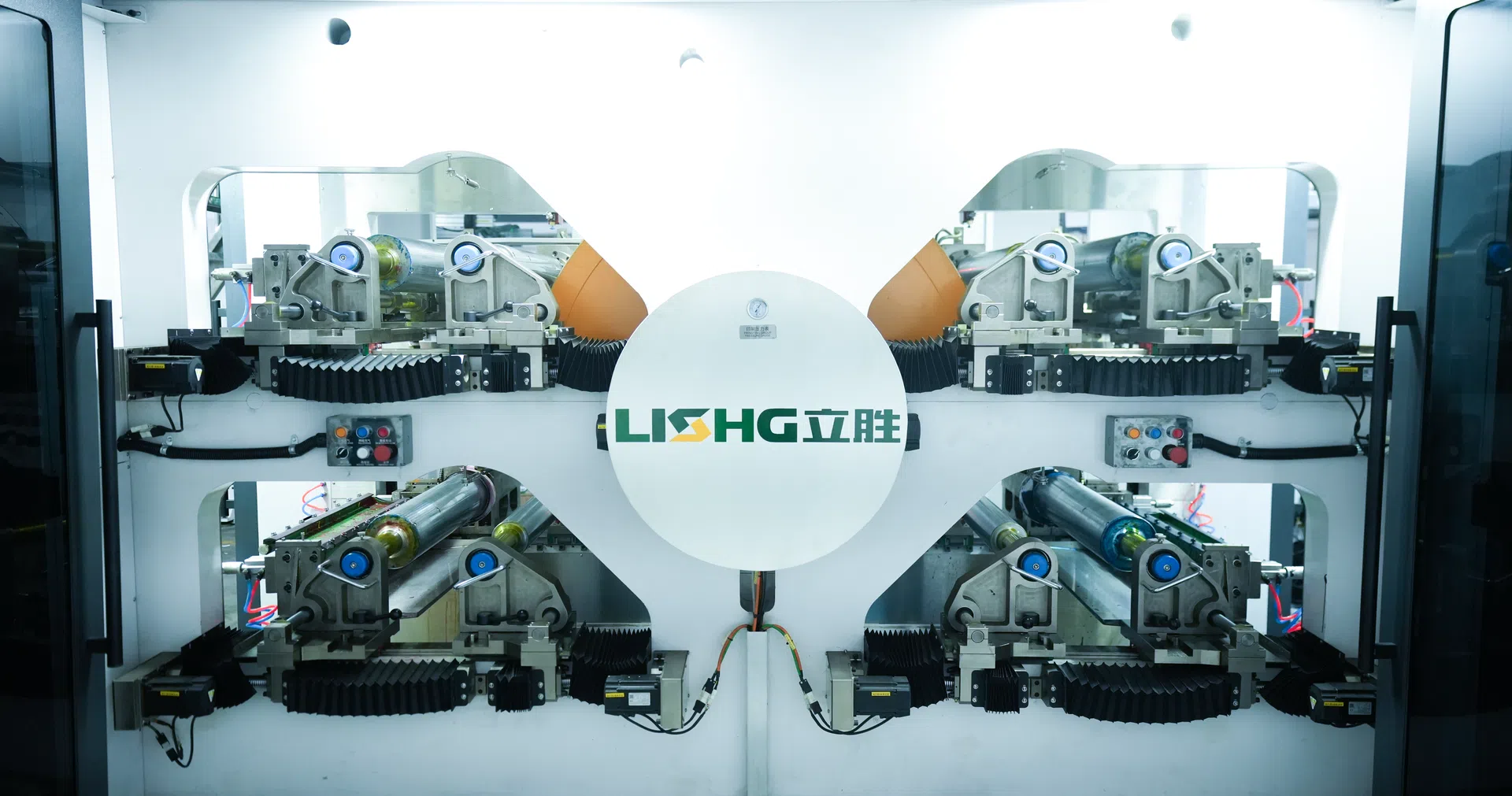

| Printing Cylinder | Sleeve type |
| Ceramic Anilox Roller | Sleeve type |
| Max.Unwind /Rewind Dia | Φ800mm |
| Adhesive Tape Thickness | 0.38mm |
| Thickness of Plate | 1.7mm,1.14mm,2.84mm,2.28mm Or as your request |
| Registration Precision | ±0.08mm |
| Heating Method | Electric heating |
| Ink | Water base ink or solvent ink |
| Power | Voltage:380V,3PH,50HZ/60HZ |
